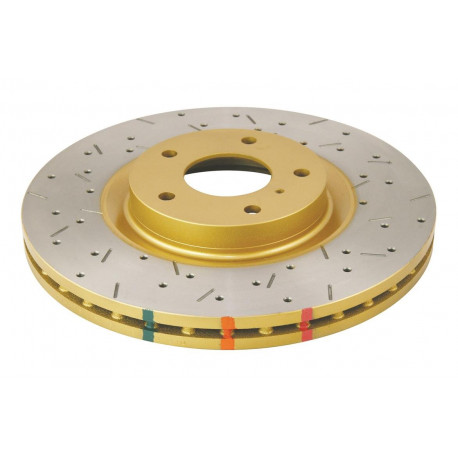

DBA 5000 series Crossed Drilled & Slotted 2-Piece Gold Hat DBA52218GLDXS (2 pcs)

DBA Street Series Rotors – Upgraded Cooling, Superior Performance

Ideal for enthusiasts seeking an upgrade over stock rotors, DBA’s Street Series rotors offer premium performance and reliability through innovative design and engineering.

The non-directional cross-drilled and slotted pattern increases the number of outgassing exit points, allowing brake pad friction gases to escape more efficiently. This improves pad bite and reduces fade, especially during high-temperature braking.

Kangaroo Paw Ventilation System

• Features 144 diamond and tear-drop shaped pillars
• Up to 59.7% increase in surface area for superior heat dissipation
• Almost 10% greater mass than standard designs – reduces brake fade
• Even pillar distribution minimizes rotor distortion
• Controlled casting quality for enhanced durability

CBN Machining for Smooth Braking

• Cubic Boron Nitride (CBN) machine-turned finish
• Reduces Disc Thickness Variation (DTV)
• Improves parallelism and minimizes brake shudder

While the 4000 XS Series with T3 slot and cross-drilled design is a great alternative for show cars and open-wheel setups, we recommend the T3 slot design for more intensive performance applications.

Technical information:

Diameter [mm]: 320
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 69
Minimum Thickness [mm]: 29,8
Thickness [mm]: 32
Height [mm]: 43.5
Pitch Circle [mm]: 114.3
Stage: Stage 5

Suitable for:

Front - MITSUBISHI/Lancer Evo 5/2.0 Turbo GSR (1997-1999) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 6/2.0 Turbo (1998-2001) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 7/2.0 Turbo (2000-2003) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 8/2.0 Turbo (2002-2005) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 9/2.0 Turbo (2005-2008) Brake Pads: DB1678, Brake Caliper: Brembo
