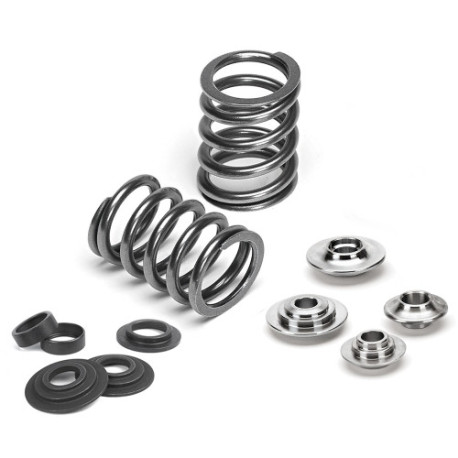

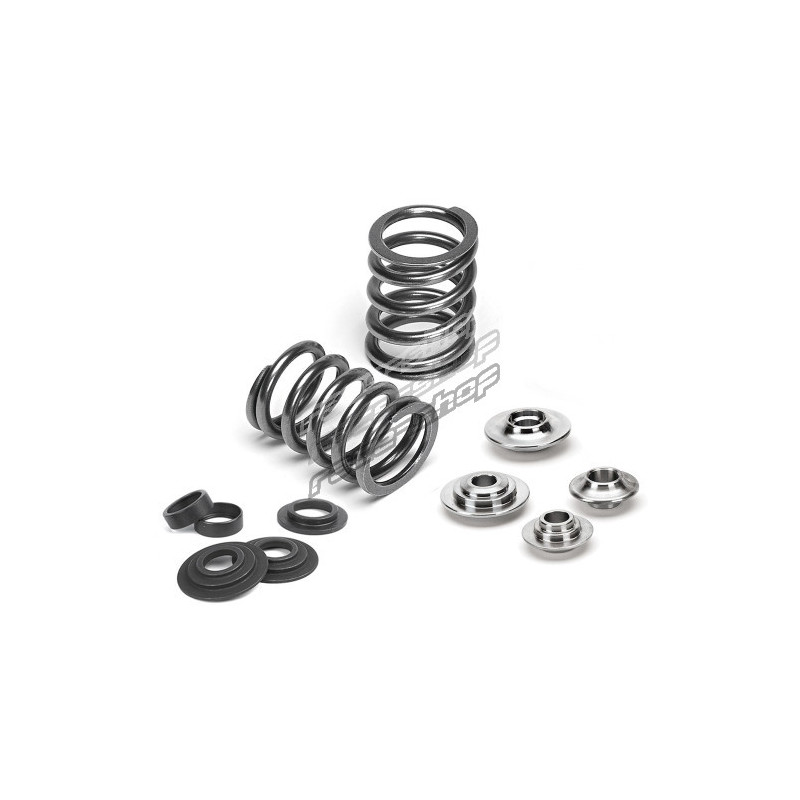

SUPERTECH Valve Spring Kit VW/Audi 2.5L EA855

Features:

• Additional Info: Single Valve Spring Kit
• Coil Bind: 24.90 mm
• Image Info: These images are representative
• Inside Diameter Outer: 16.50 mm
• Kit Spring: SPR-A2416N
• Kit Spring Qty: 20
• Max Lift: 12.50 mm
• Open Pressure: 178 @ 10 ; 190 @10
• Outside Diameter Outer: 24.00 mm
• Package Height: 63,00 mm
• Package Length: 243,00 mm
• Package Weight: 942.00 g
• Package Width: 166,00 mm
• Retainer: RET-A2416-N2
• Retainer Qty: 20
• Seat Pressure: 73 @ 37.40 ; 85 @36
• Spring Rate: 10.5

Suitable For:

Volkswagen/Audi 2.5L 20v - EA855 EVO
