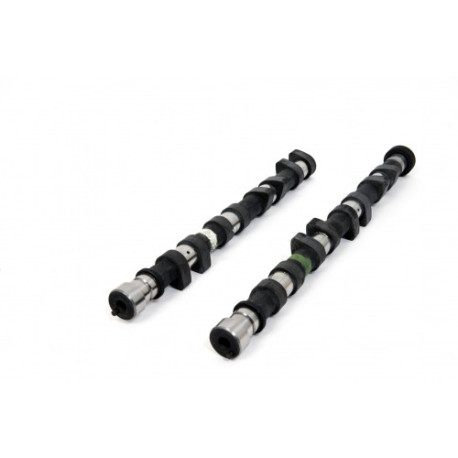

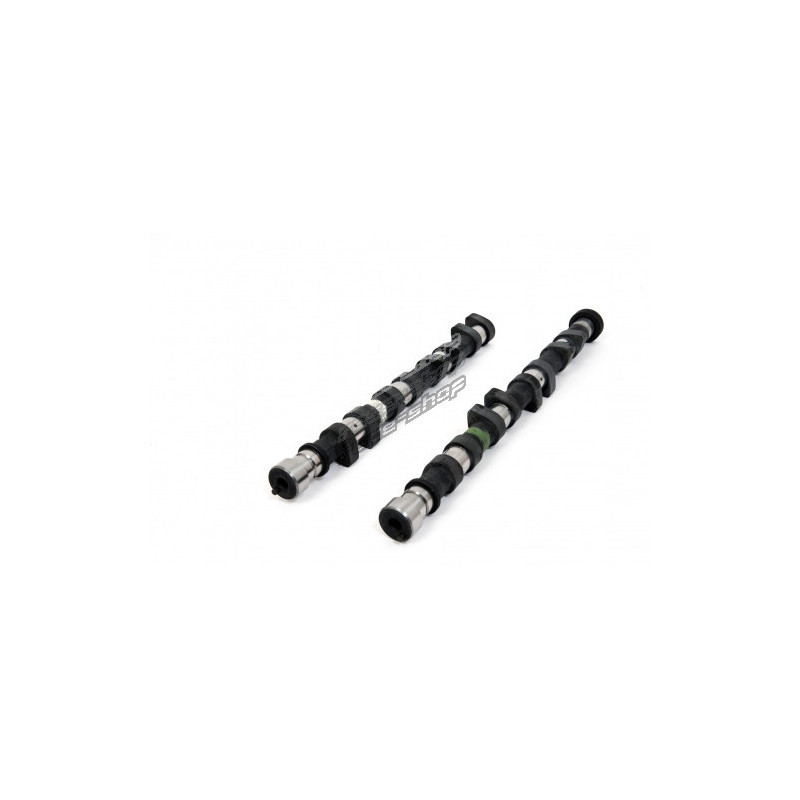

Piper Camshaft Opel C20XE/C20LET Race

Features:

• Additional Info: Short Exhaust Camshaft Optional N/A
• Duration Exhaust: 300 deg
• Duration Intake: 300 deg
• Full Exhaust Lift: 104 deg
• Full Intake Lift: 102 deg
• Package Height: 85,00 mm
• Package Length: 568,00 mm
• Package Weight: 4830.00 g
• Package Width: 125,00 mm
• Power Band: 4000-8500 rpm
• TDC Exhaust Lift: 3.71 mm
• TDC Intake Lift: 4.75 mm
• Timing Exhaust: 74 - 46 deg
• Timing Intake: 48 - 72 deg
• Type: Race N/A
• Valve Exhaust Clearance: 0.30 mm
• Valve Exhaust Lift: 11.05 mm
• Valve Intake Clearance: 0.30 mm
• Valve Intake Lift: 11.73 mm

Suitable For:

Opel (112) 2.0L 16v - C20XE (7898)
