STRONGFLEX - 226121B: Kompletná sada silentblokov

Ref: 226121B

Názov: Kompletná sada silentblokov

Určené pre:

Audi S3 99-03

Audi A3 96-03 8L Quattro

Audi TT 99-03 Quattro

Skoda Octavia I 96-04 4x4

Seat Leon & Cupra R 4x4 99-05

Volkswagen Bora 98-05 4x4

Volkswagen Golf IV R32

Volkswagen Golf IV 4x4

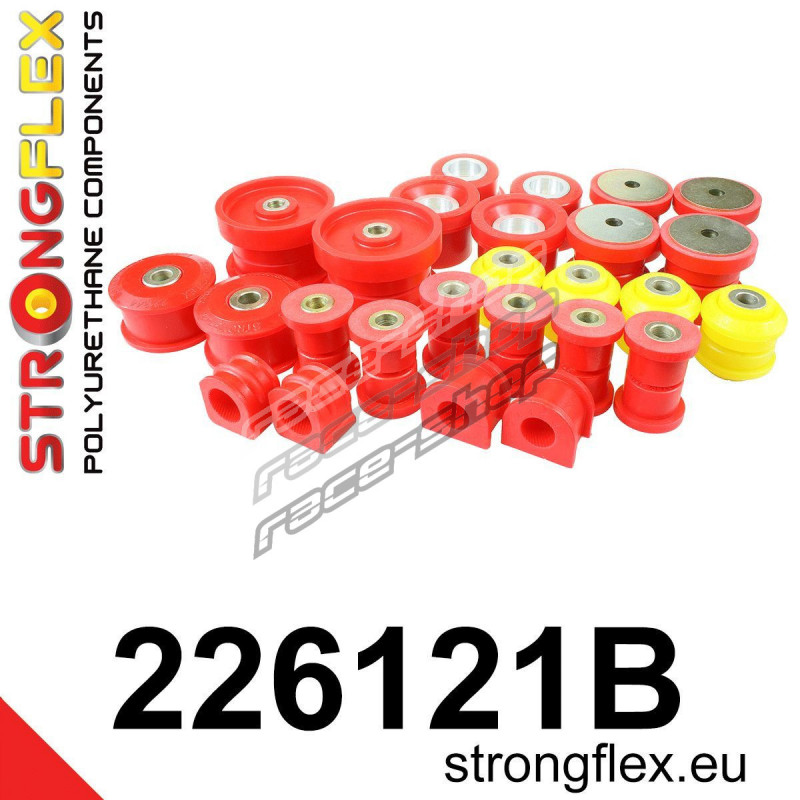

Zahŕňa:

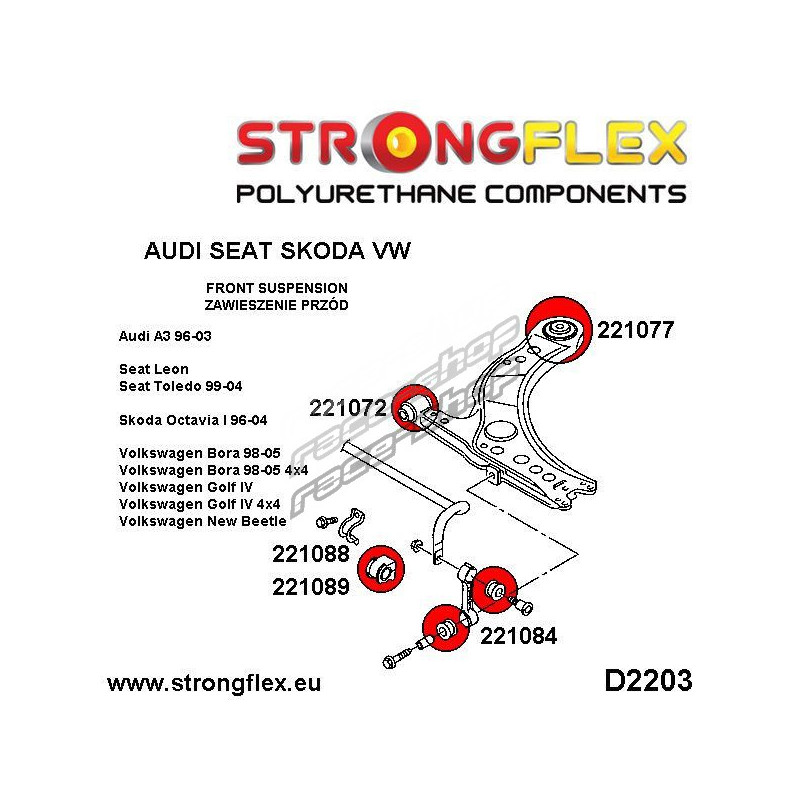

2 x 221088B Predný silentblok stabilizátora

alebo

2 x 221089B Predný silentblok stabilizátora

Priemery:

15,19,20,21,23mm

2 x 221072B Predný silentblok predného ramena (30mm)

alebo

2 x 221343B Predný silentblok predného ramena (45mm)

2 x 221344B Zadný silentblok predného ramena

alebo

2 x 221077B Zadný silentblok predného ramena

4 x 221371B ZADNÉ priečne rameno - vnútorný silentblok

4 x 221940A Rear tie bar to hub bush SPORT

2 x 221372B ZADNÉ spodné rameno - predný silentblok

2 x 221445B Zadné puzdro stabilizátora

Priemery:

12,13,14,15,16,17,18,19,20,21mm

2 x 221862B Rear diff mount - front bush

2 x 221863B Rear diff mount - zadný silentblok

4 x 221864B Zadná nápravnica - silentblok

ks/balení: 26

Požadované/vozidlo: 1

Diagramy:

S2201

S2202

D2207

D2208

D2216

S2206

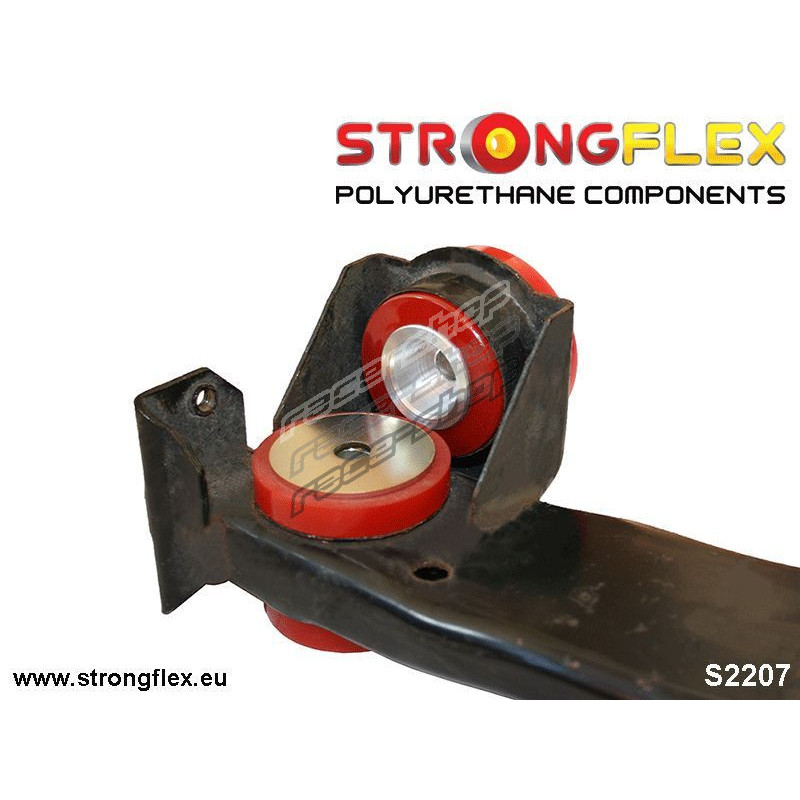

S2207

POZNÁMKA!

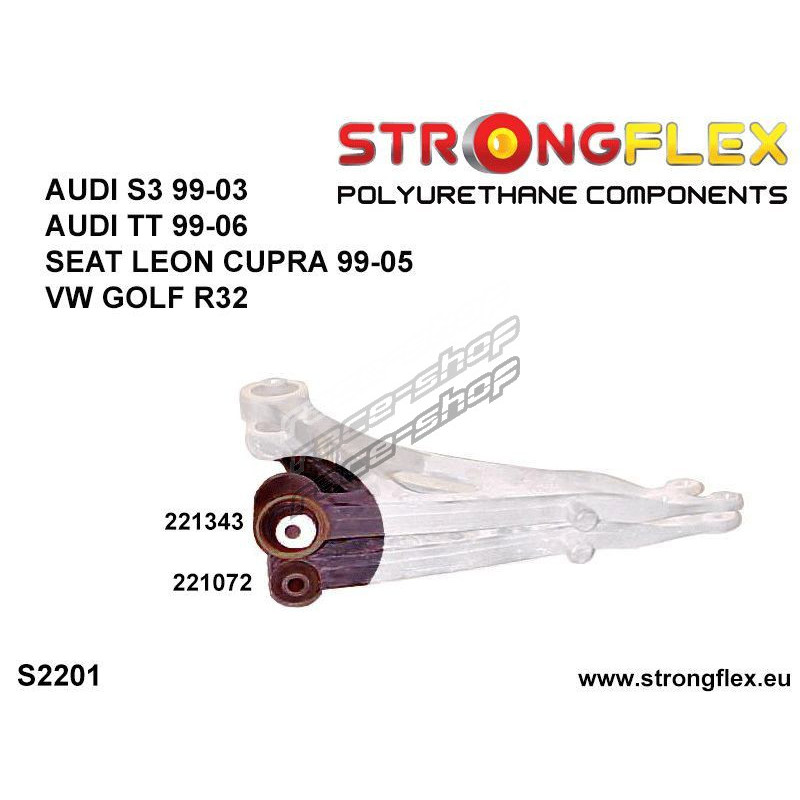

In the models in which the "steel cast arm" type arms were mounted, there are two types of front arm bushings. The earlier models were equipped with smaller Ø30mm bush (221072), whereas the later models had Ø45mm larger bush (221343).
The rear bushing for this arm is 221344.

For the "steel pressed / tin" arms, the matching bushes are: 221072 a 221077.

Before ordering, please check the type of the arm carefully. In the case of the "steel cast arm", check the diameter of the front bush additionally (See photo S2201)!

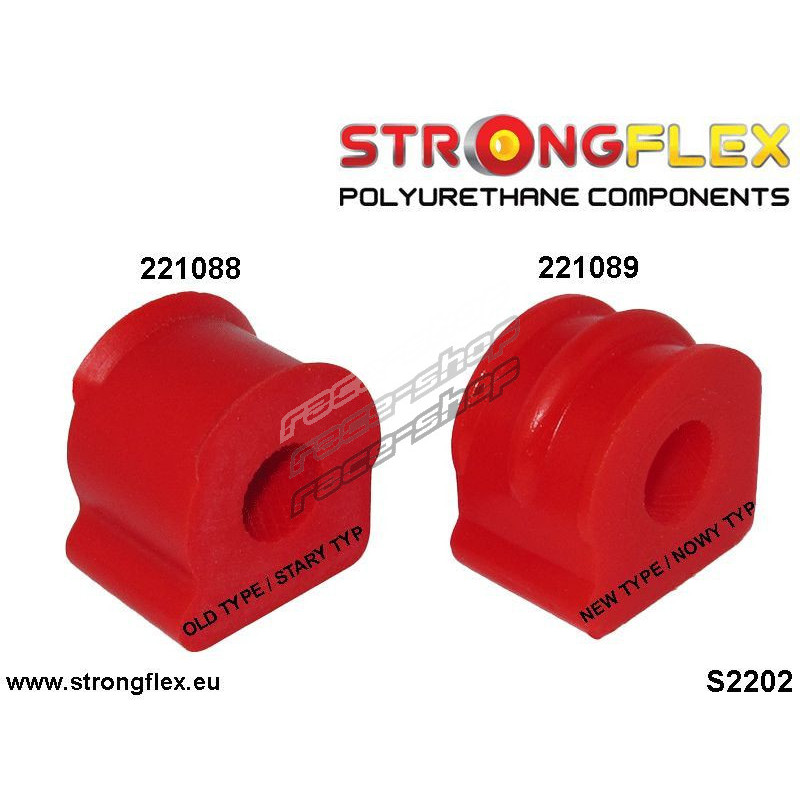

There are two types of front stabilizer bushing.
OLD TYPE - 221088 alebo NEW TYPE - 221089
Before buying check the type of bush a diameter.
See picture S2202

Bush 221940A is iba available in 90ShA hardness (yellow) because the original rubber bush is made of a hard rubber compound.
Použitie puzdra s tvrdosťou 80ShA (červené) zníži jazdné vlastnosti vozidla na úroveň pôvodného gumového puzdra.

Tvrdosť: 80ShA

Materiál: POLYURETÁN (PUR/PU)

Do každého výrobku pridávame tuk!
