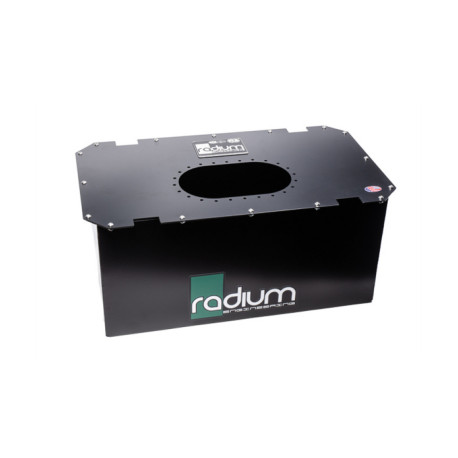

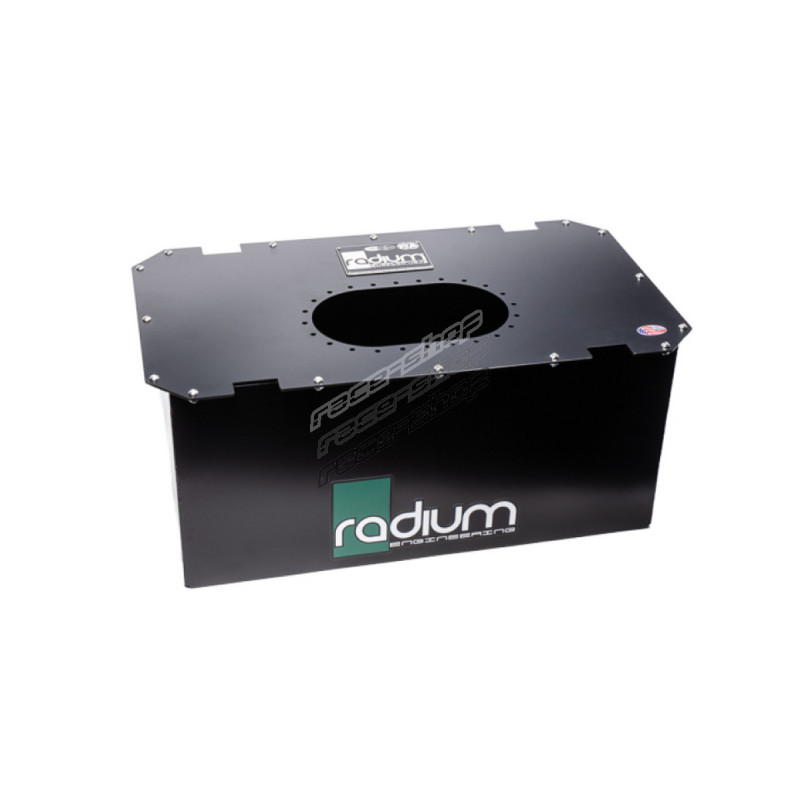

RADIUM ENGINEERING R06A Fuel Cell Can - 20L (6 Gallon)

Radium Engineering Fuel Tank 20-0666 – 6gal (20L)

Lightweight, durable aluminum canister designed for the Radium RA-Series 80L (22 gallon) insert. Compatible with many motorsport applications, compliant with FIA FT-3 1999 and SFI 28.3 approvals.

Key features

• TIG-welded 5052 aluminum housing: low weight and high corrosion resistance.

• Integrated M8 mounting points for easy installation in a frame or cage.

• Cutouts for ¼-turn hoses and threaded AN fittings allow for quick connection of the supply system.

• Through-hole cable channel for electric pump (bulkhead) – no additional holes required.

• Removable service cover with Viton® seal ensures easy access to the bladder and pump.

• Compatible with universal Radium RA-Series bladders (RA-6AB, RA-6AN) or interchangeable ATL/FT3 bladders of the same format.

External dimensions

• Length: 736mm
• Width: 736mm
• Height: 292mm
