Doprava zdarma Spojky a zotrvačníky Xtreme KMI18683-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm | race-shop.sk Zobraziť väčšie

*366 962

Xtreme clutch

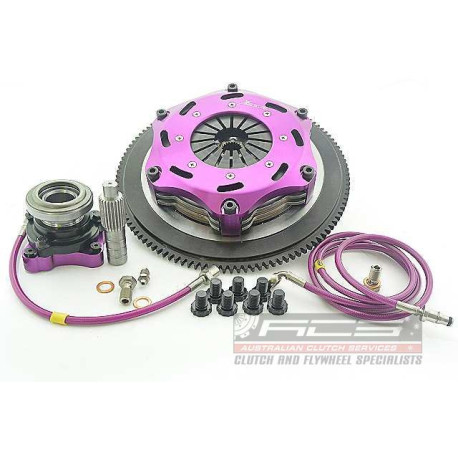

KMI18683-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

New product

Dočasne nedostupné

2.603,70 € s DPH

Ospravedlňujeme sa, tento produkt aktuálne nemáme na sklade ani ho nevieme objednať. Vyberte si prosím iný.

Otázka k produktu

Otázka k produktu

KMI18683-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm

KMI18683-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

Pošlite obsluhe obchodu otázku k tomuto produktu.

* povinný údaj

  alebo  Zrušiť

Upozorniť po naskladnení

Informujte ma o naskladneni

KMI18683-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm

KMI18683-2E Xtreme Performance 184mm Rigid Ceramic Twin Plate Clutch Kit Incl Flywheel & CSC 1220Nm

Ak chcete byť informovaný o naskladnení produktu prostredníctvom emailu vyplňte formulár.

* povinný údaj

  alebo  Zrušiť

Pre automatické informovanie o naskladnení produktu,
kliknite na "Upozorniť po naskladení".

KMI18683-2E

9337467186321

Xtreme Clutch delivers expertly engineered, high-performance clutch solutions for the street and track. Trusted by professional race teams worldwide, we provide the ultimate upgrade for your driving experience.

-2E

The Xtreme 184mm Race Clutch is an economically priced solution for those wanting a strong Race clutch without having to compromise on quality. The Race Clutch is a lightweight design for when every second counts.

 Ø184mm Light Diaphragm (2.6mm)Ø184mm Heavy Diaphragm (2.8mm)
Clamping Force950kg1080kg
Torque Rating1060Nm1210Nm
Bearing Contact Diameter44-52mm44-52mm
Bearing Load (@ 48mm)210kg260kg
Release Travel Required5mm5mm
Assembly Mass (without flywheel)4.45kg4.45kg
Disc Set Static Mass1.1kg
Friction Thickness New6.35mm (0.250")6.35mm (0.250")
Friction Thickness Worn5.97mm (0.235")5.97mm (0.235")

Product Features:

  • Push type billet alloy cover
  • 4140 Chromoly pressure plate
  • Hardened steel wear posts
  • High and low ratio pressure plate options
  • Low inertia
  • Serviceable components
  • SFI certified design

Tech. Info:

Reference: KMI18683-2E

Weight: 11.93

Note:

Clutch Disc Diameter (mm): 184
Clutch Disc Spline Count: 23
Clutch Disc Spline Diameter (mm): 26
Torque (Nm): 1220
Flywheel Step: +2.5mm
Design: Twin Plate
Stage: Multiplate - track use only
Clamp Load:
Recommended for: Motorsport
Ring Gear Tooth count:
Additional information:

184mm Twin Plate

Suitable for:

- Mitsubishi/Lancer/2.0 i Ralliart 4WD (CY4A)/2008.10-2015/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)
Mitsubishi/Lancer/2.0 Ralliart 4WD (CX4A)/2008.10-2015/4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)
Mitsubishi/Lancer/EVO X (CZ4A)/2008.06-2015.12/4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12)
Mitsubishi/Lancer/EVO X (CZ4A)/2008.06-2015.03/4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03)
Mitsubishi/Lancer/EVO X (CZ4A)/2014.09-2015.12/4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12)
Mitsubishi/Lancer/EVO X - FQ400 (CZ4A)/2009.05-2010.12/4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12)
Mitsubishi/Lancer/EVO X - FQ440 (CZ4A)/2014.05-2014.06/4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06) ,

Napísať recenziu

Napísať recenziu







  alebo  Zrušiť

Nenašli ste odpoveď ?
Položiť otázku
Máte otázku? Vyhľadajte si odpoveď v diskusii.




ZnačkaModelTypkód motora
MitsubishiLancer2.0 Ralliart 4WD (CX4A)4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)
MitsubishiLancer2.0 i Ralliart 4WD (CY4A)4B11-T/C 1998 Petrol 177 kW 241 BHP (2008.10 - 2015)
MitsubishiLancerEVO X (CZ4A)4B11-T/C 1998 Petrol 217 kW 295 BHP (2008.06 - 2015.12)
MitsubishiLancerEVO X (CZ4A)4B11-T/C 1998 Petrol 221 kW 301 BHP (2008.06 - 2015.03)
MitsubishiLancerEVO X (CZ4A)4B11-T/C 1998 Petrol 226 kW 307 BHP (2014.09 - 2015.12)
MitsubishiLancerEVO X - FQ400 (CZ4A)4B11-T/C 1998 Petrol 301 kW 409 BHP (2009.05 - 2010.12)
MitsubishiLancerEVO X - FQ440 (CZ4A)4B11-T/C 1998 Petrol 328 kW 446 BHP (2014.05 - 2014.06)
