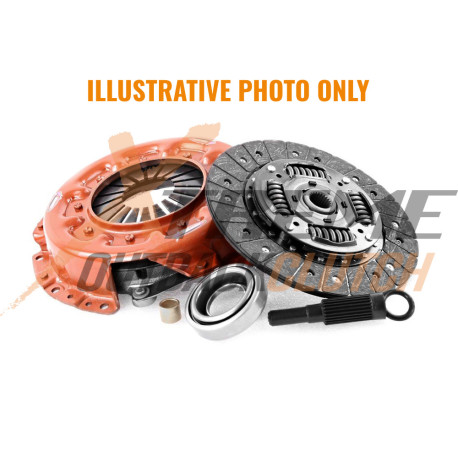

KGM22003-1A Clutch Kit Xtreme Outback Heavy Duty Organic 250Nm 600Kg (30%)

Xtreme Outback - Heavy duty sprung organic kit /-1ARecommended for: Vehicles with minor performance modifications, are daily driven but also used off-road and vehicles that tow regularly.

Heavy duty organic clutch kit provides excellent driveability along with an approximate 15-40% increase in clamp force (application specific). These clutch kits are mainly used in street vehicles with larger wheels or performance upgrades as well as vehicles that are regularly used off-road or tow at the limit of their tow capacity.

Specifications:

• Torque capacity 250Nm
• Clamp load 600Kg 30% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme OutbackDesigned and Engineered to handle the toughest conditions on the planet, Xtreme Outback Clutch Kits are the ultimate 4x4 heavy duty upgrade for the street and offroad.

Each Xtreme Outback clutch kit is designed and developed to offer the ultimate balance between performance, durability and drivability. As used by motorsport teams and armoured car manufacturers across the globe, Xtreme Outback clutch kits can be trusted to get you there... and back again.

What's in the Box?

Xtreme Outback upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KGM22003-1A

Weight: 6.01

Note:

Torque (Nm): 250
Clamp Load: 600Kg (30% inc.)
Flywheel Step: 0
Clutch Disc Diameter (mm): 215
Clutch Disc Spline Count: 24
Clutch Disc Spline Diameter (mm): 25,4
Recommended for: Street Performance, Heavily Loaded or Tow Vehicles
Design: Single Plate
Stage: Stage 1

Suitable for:

- Holden/H Series/2.0/1983.09-1991.12/4ZC1 1994 Petrol 68 kW 92 BHP (1983.09 - 1991.12)
Isuzu/Fargo/2.0/1986.01-1988.12/4ZC1 1994 Petrol 69 kW 94 BHP (1986.01 - 1988.12)
Isuzu/Trooper/Gen. I | 2.3 (UBS16)/1985.11-1991.12/4ZD1 2254 Petrol 66 kW 90 BHP (1985.11 - 1991.12)
Isuzu/KB/2.2 D 4WD/1983.01-1988.03/C223 2238 Diesel 39 kW 53 BHP (1983.01 - 1988.03)
Isuzu/Trooper/Gen. I | 2.2 D 4x4/1984.05-1989.07/C223 2238 Diesel 39 kW 53 BHP (1984.05 - 1989.07)
Isuzu/Trooper/Gen. I | 2.2 D 4WD/1984.05-1989.12/C223 2238 Diesel 39 kW 53 BHP (1984.05 - 1989.12)
Isuzu/Trooper/Gen. I | 2.2 D (UBS52)/1983.01-1983.12/C223-T 2238 Diesel 45 kW 61 BHP (1983.01 - 1983.12)
Isuzu/Trooper/Gen. I | 2.2 TD (UBS52)/1984.03-1991.12/C223-T 2238 Diesel 53 kW 72 BHP (1984.03 - 1991.12)
Holden/H Series/1.8 (KB27)/1982.01-1983.12/G180Z 1817 Petrol 63 kW 86 BHP (1982.01 - 1983.12)
Holden/H Series/1.8 4x4 (KB42)/1982.01-1983.12/G180Z 1817 Petrol 63 kW 86 BHP (1982.01 - 1983.12)
Isuzu/Campo/2.0 (KB28)/1985.06-1988.12/G200Z 1949 Petrol 58 kW 79 BHP (1985.06 - 1988.12)
Isuzu/Campo/2.0 4WD (KB48)/1985.06-1988.12/G200Z 1949 Petrol 58 kW 79 BHP (1985.06 - 1988.12)
Holden/H Series/2.0 4x4 (UBS13)/1981.11-1985.07/G200Z 1949 Petrol 65 kW 88 BHP (1981.11 - 1985.07)
Holden/H Series/2.0 (KB28)/1983.01-1987.12/G200Z 1949 Petrol 65 kW 88 BHP (1983.01 - 1987.12) ,
