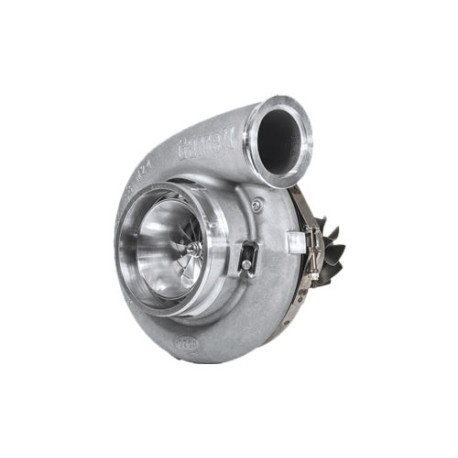

Garrett 851285-5017S Supercore GTX Series GTX5009R, Trim 54

Garrett GTX5009R supercore — a balanced core assembly (centre cartridge with compressor cover and back plate) for building or rebuilding GTX turbochargers.

The GTX GEN II is the next evolution of our GTX line with major updates and new technology.

GTX GEN II compressor wheels were designed using proprietary Garrett Motion computer simulation technology focusing on CFD analysis to optimize the wheel design to reach maximum efficiency and mass flow for each turbocharger.

Specifications

• Frame: GTX50
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 80 mm inducer, 109 mm exducer, 54 trim, 0.88 A/R
• Turbine wheel: 99 mm inducer, 91 mm exducer, 84 trim
• Inlet flange: V-Band
• Power: up to 1700 HP
• Displacement: 2.5-10.0 L

Fits & compatible parts

• Compatible turbochargers: GTX5009
