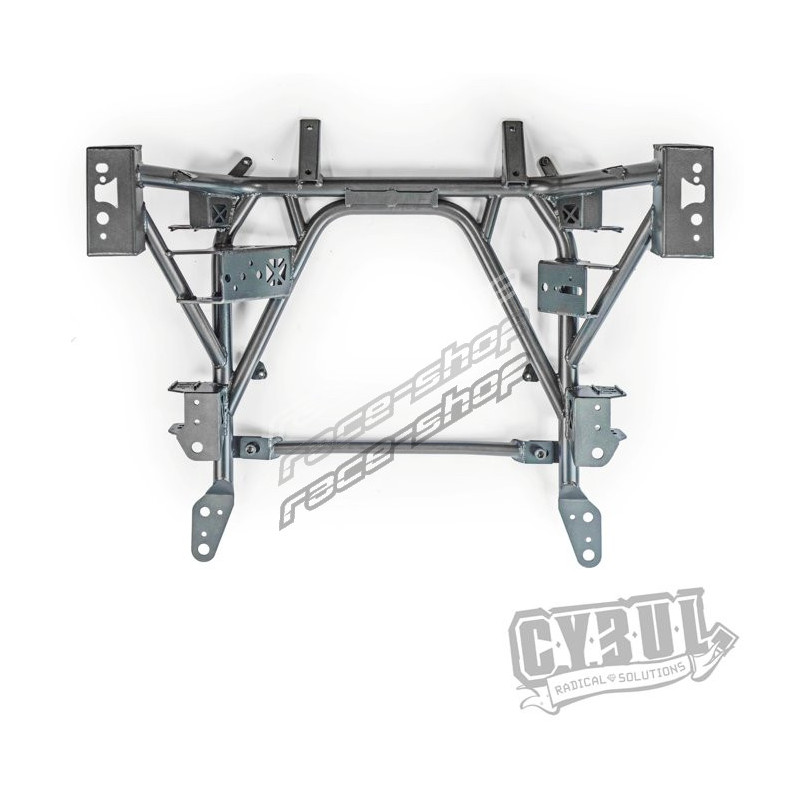

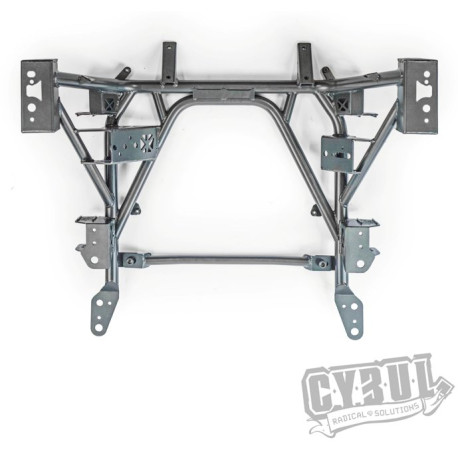

CYBUL Mazda MX-5 NB Front Tubular Subframe with Roll Center Correction

The MX5-XNB-SAN-KIX-001 front tubular subframe is engineered to enhance structural rigidity and optimise suspension geometry. Constructed from chromoly steel with a reinforced spatial design, it increases chassis stiffness while reducing front-end weight.

The revised control arm mounting points are positioned 18 mm higher to correct roll center geometry, improving handling performance in lowered vehicles and reducing understeer. The design maintains full compatibility with OEM mounting locations, ensuring seamless integration with factory components. Its open structure also improves engine bay accessibility and provides additional space for maintenance, wiring, and engine conversions.

Key Features

• Tubular front subframe construction
• Chromoly steel material for high strength and durability
• Roll center correction with control arm mounting points raised by 18 mm
• Weight reduction of approximately 15% (around 12% with rear brace installed)
• Increased chassis rigidity through reinforced spatial design
• Retains OEM mounting points for engine mounts, covers, radiator, and related components
• Improved engine bay access
• Engine swap compatibility (including larger engines such as V8)
• Includes rear brace for additional rigidity
• Supplied with installation hardware (bolts and nuts)

Suitable for

• Mazda MX-5 NB
