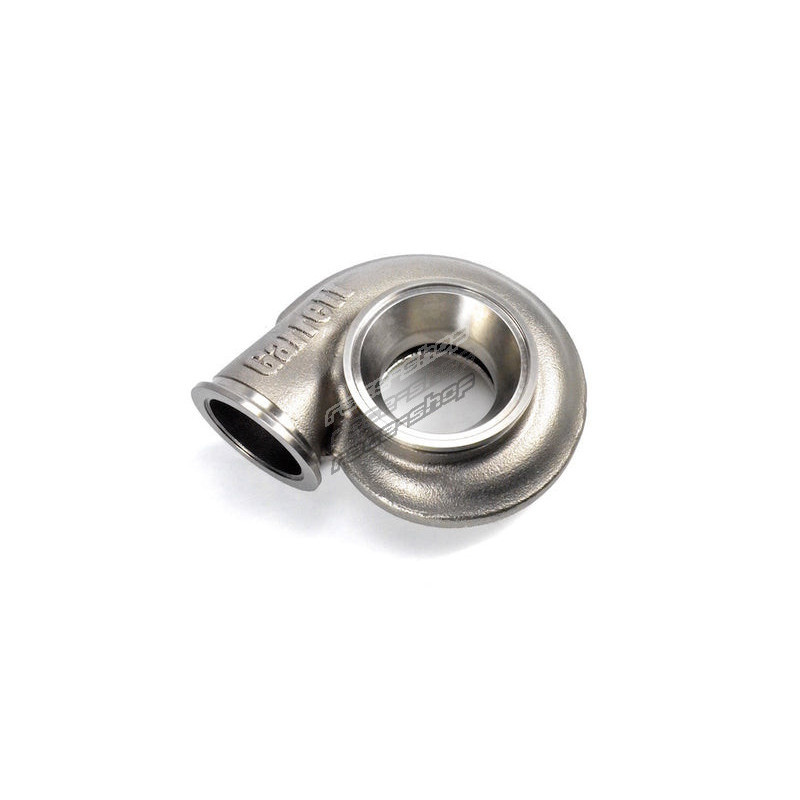

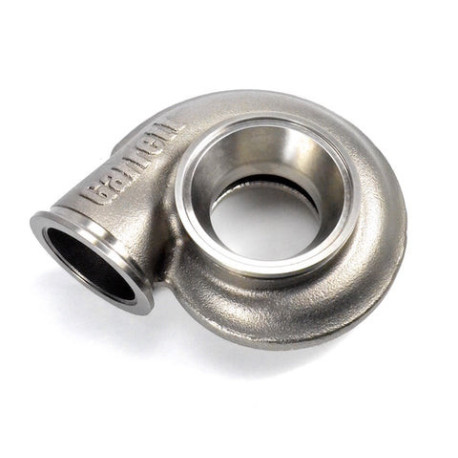

Garrett 740902-0112 Turbine Housing G35, 0.61 A/R, V-Band

Garrett turbine housing for G35-frame turbochargers, 0.61 A/R with V-Band inlet flange, Stainless steel material.

All G Series Turbine housings are made from stainless steel to provide ultimate durability and temperature resistance up 1050 degrees C.

Internally wastegated housings are compact, efficient, and designed with maximum bypass port size to reduce boost creep and provide better boost control.

Turbine housings are available in a variety of wastegated and non-wastegated, open volute, T25 and Vband configurations so be sure to order the correct part for your application.

Specifications

• Frame: G35
• Material: Stainless steel
• A/R: 0.61
• Inlet flange: V-Band
• Outlet flange: V-Band
• Rotation: reverse
• Wastegate: external / free-float
• Scroll: single
• Configuration: open volute

Features

• Turbine Housings
