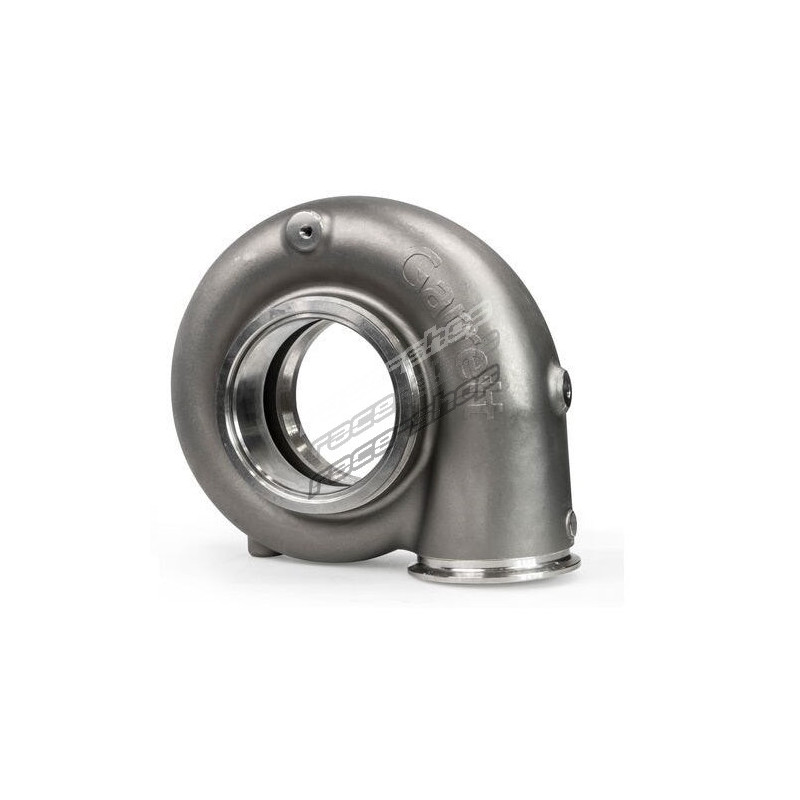

Garrett 761208-0083 Turbine Housing G57, 1.09 A/R, V-Band

Garrett turbine housing for G57-frame turbochargers, 1.09 A/R with V-Band inlet flange, Stainless steel material.

Specifications

• Frame: G57
• Material: Stainless steel
• A/R: 1.09
• Inlet flange: V-Band
• Outlet flange: V-Band
• Rotation: standard
• Wastegate: external / free-float
• Scroll: single

Fits & compatible parts

• Compatible turbochargers: GTX55

Features

• Turbine Housings:
• Stainless steel turbine housings
• Short outlet (SFI certified not available)
• (3) Turbine configurations: 1.09 A/R, 1.25 A/R, 1.41 A/R
• V-band inlet: 4.25 inch (108mm) (same as GTX55)
• V-band outlet: 5.15 inch (131mm) (same as GTX55)
