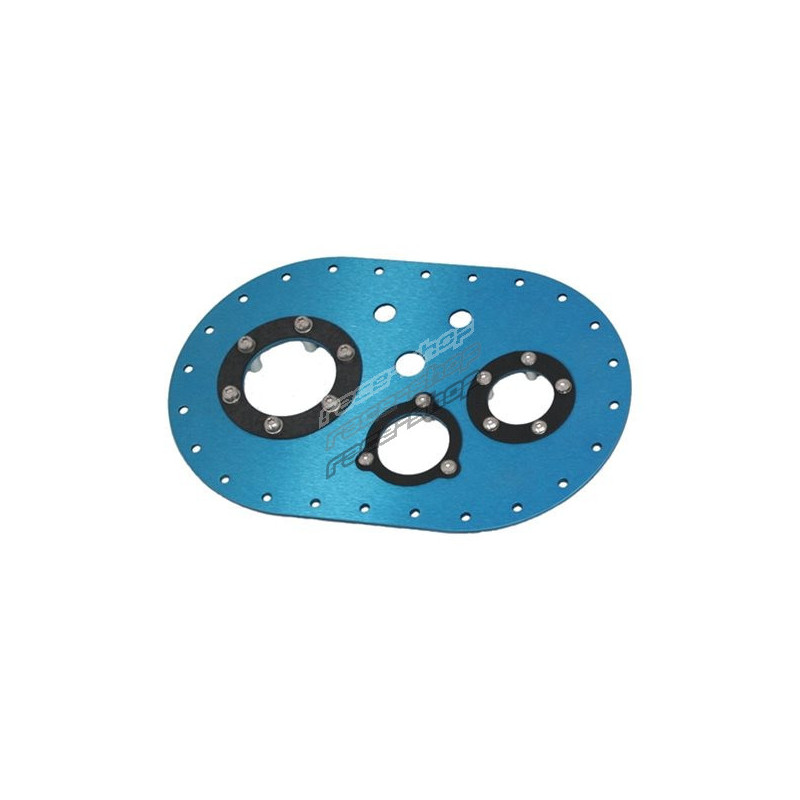

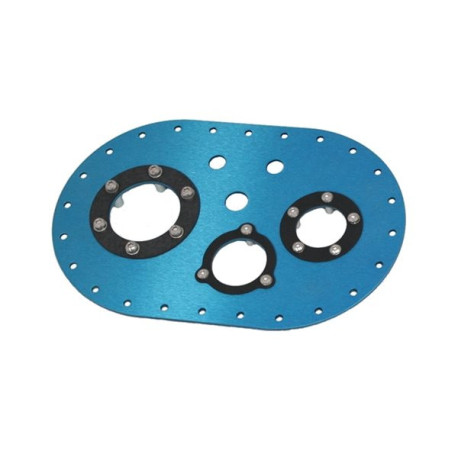

ATL Aluminium Single Fill Plate - 6"X10"

Product specification:

• 6 x 10" plate (to suit Saver Cell bolt hole pattern)
• Ø76.2mm PCD pattern containing (6) M6 threaded inserts for Fuel Filler Neck
• Ø54.1mm PCD pattern containing (5) M5 threaded inserts for an ATL Fuel Level Sender unit. (EL-AD-151 or EL-AD-152)
• Ø60.0mm PCD pattern containing (3) M5 threaded inserts for ATL Auxiliary Plates (PL-CB-002 to PL-CB-013)
• AN6 holes (for fuel outlet , fuel return or ATL Dipstick )
• AN8 hole (for fuel outlet, fuel return or vent valve)
• Supplied with all viton gaskets, bolts and washers
• Supplied with ATL sticker pack
• Colour: Anodised in blue

Supplied with:

• ATL Top Plate sticker pack
