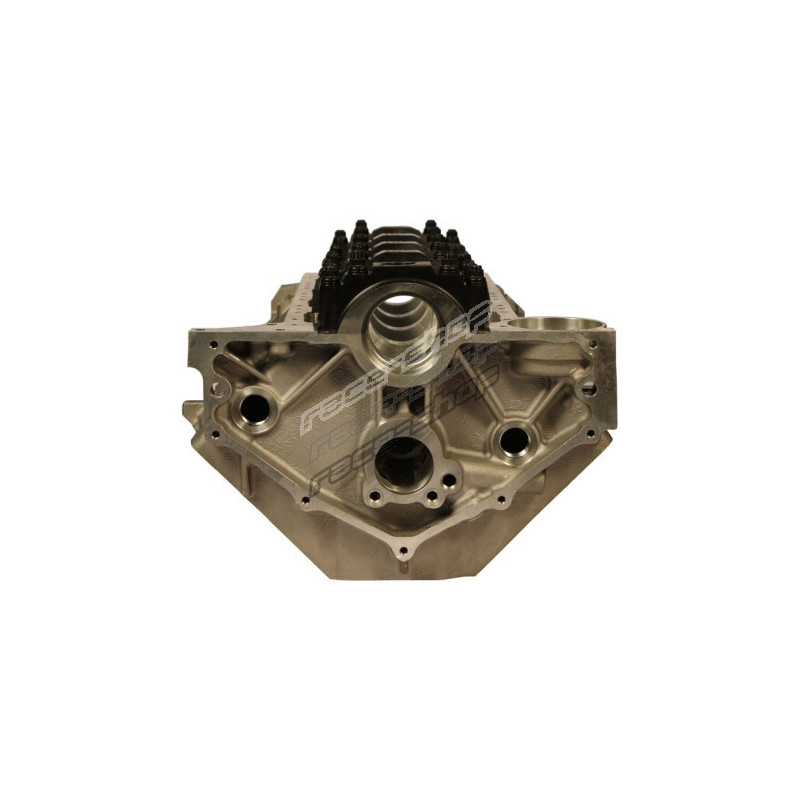

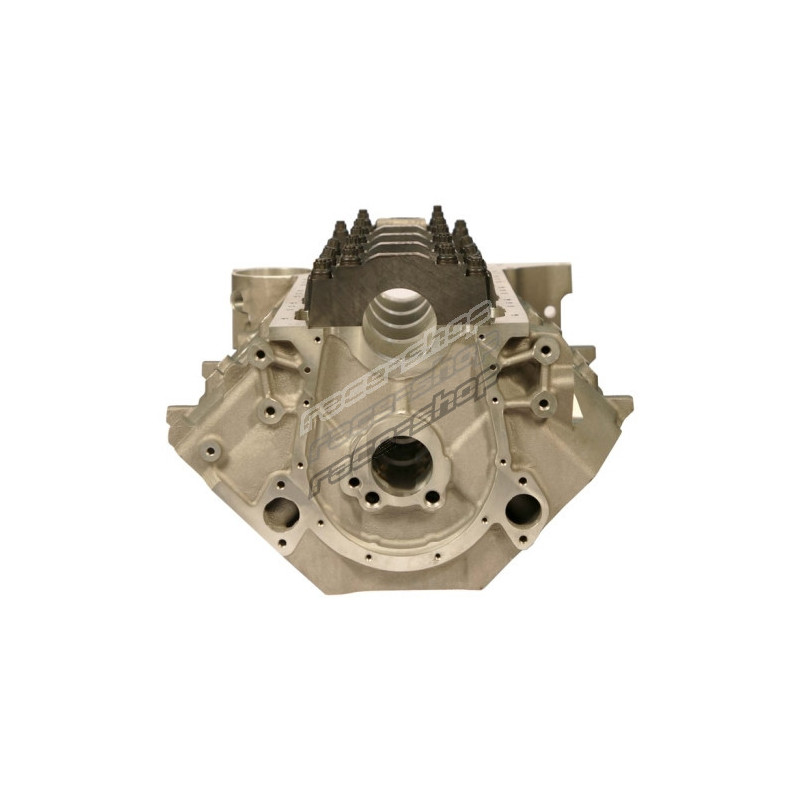

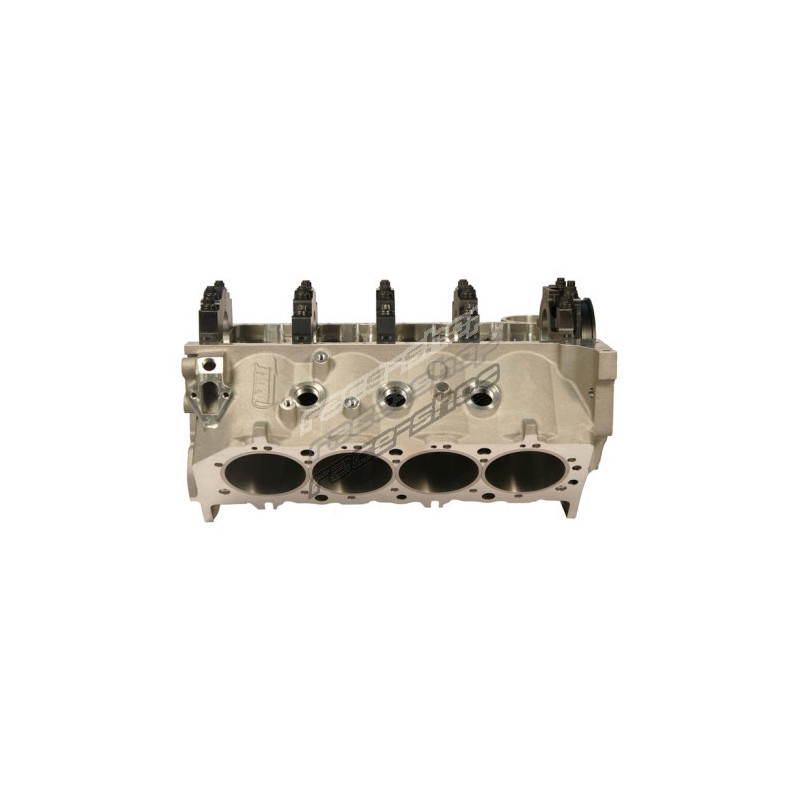

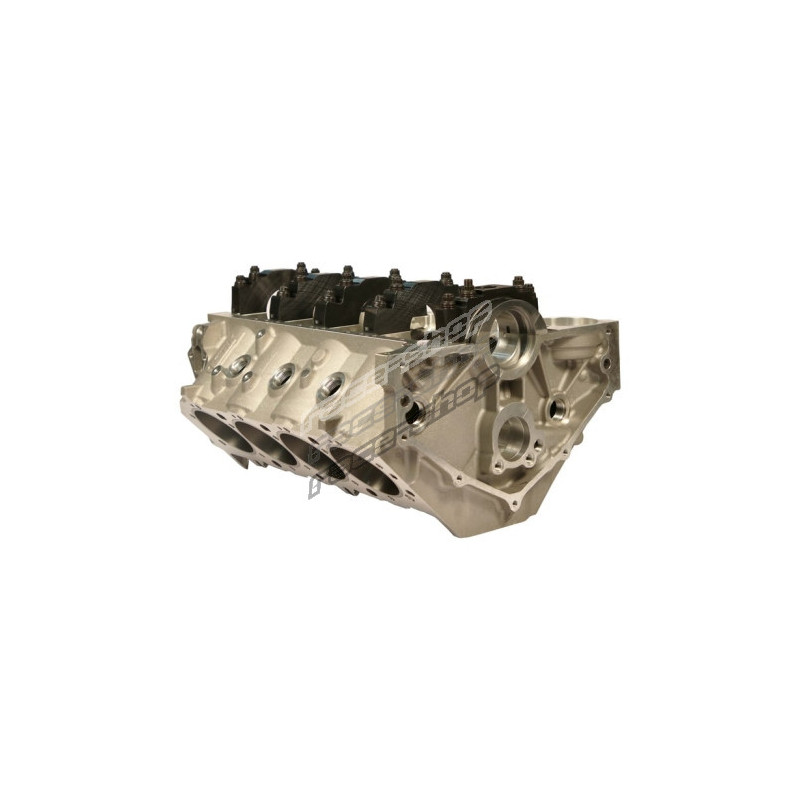

DART Big M Race Series Chevy Big Block Aluminum Block – 4.250" Bore, 9.800" Deck

The camshaft is raised .400 in. above the stock location to increase clearance for the connecting rods and crankshaft counterweights. The main oil gallery is located alongside the camshaft tunnel to eliminate interference with the crank assembly. Advanced engineering makes Dart Aluminum big blocks the choice for serious competition.
Premium alloy: Dart Aluminum blocks are cast from RMR Cast Aluminum alloy for superior strength and integrity; Standard 9.800” or 10.200” deck heights/options to 10.400”; Raised camshaft location +.400” clears stroker crankshafts; Ductile Iron sleeves with extra thick cylinder walLS2 promote excellent ring seal; Reinforcing ribs strengthen the lifter valley and bell housing flange; Inboard valley head stud bosses improve head gasket sealing; Priority main oiling system delivers oil directly to the crankshaft bearings to enhance reliability at high engine speeds; With or without distributor provision; Steel 4-bolt main caps or Ductile Iron and optional Aluminum caps. Splayed outer bolts for extra strength; Dual bolt patterns for standard BBC and notched oil pans; HIP (Hot Isostatic Pressed) Casting; Parts kit included (PN 32000006)

• Industry: Automotive
• Camshaft Location: Raised 0.400 IN
• Cylinder Bore Diameter: 4.250 IN
• Deck Height: 9.800 IN
• Engine Block Weight: 160 LBS
• Freeze Plug Type: Screw-in
• Camshaft Lifter Bore: 0.842 IN
• Main Bearing Type: Standard
• Main Cap Type: Steel
• Material: RMR Cast Aluminum Alloy
• Rear Main Seal Type: 2-Piece
• Product Type: Engine Block
• Engine Block Material: RMR Cast Aluminum Alloy
• Make - Web: Chevrolet
• Engine - Web: Big Block
• Emissions Code: 3
