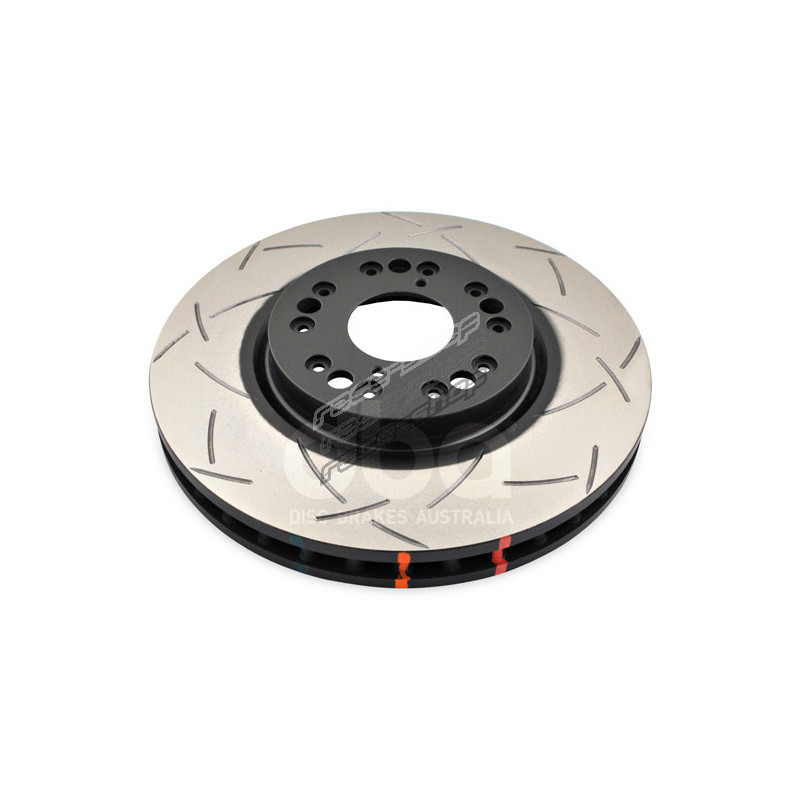

DBA 4000 series T3 DBA4748S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 296
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 62
Minimum Thickness [mm]: 30
Thickness [mm]: 32
Height [mm]: 51
Pitch Circle [mm]: 114.3
Stage: Stage 4

Suitable for:

Front - LEXUS/Aristo/3.0 Twin Turbo (1994-1997) Brake Pads: DB1395, Front - LEXUS/GS300/3.0 (1991-1993) , Front - LEXUS/GS300/3.0 (1993-1995) , Front - LEXUS/GS300/3.0 (1995-1997) , Front - LEXUS/GS300/3.0 (1998-2005) Brake Pads: DB1395, Front - LEXUS/GS430/4.3 (2000-2005) Brake Pads: DB1395, Front - LEXUS/IS200/2.0 153BHP (1999-2005) Brake Pads: DB1395, Front - LEXUS/IS300/3.0 230BHP (2001-2005) Brake Pads: DB1395, Front - LEXUS/LS400 (XF10)/4.0 (1993-1995) , Front - LEXUS/SC400/4.0 (1994-2000) , Front - LEXUS/SC430/4.3 (2001-2010) Brake Pads: DB1395, Front - LEXUS/Soarer JZZ30/2.5 Turbo (1997-2000) , Front - LEXUS/Soarer JZZ30/2.5 Twin Turbo GT-TL (1991-1996) , Front - LEXUS/Soarer JZZ31/3.0 (1996-2000) , Front - LEXUS/Soarer UZZ32/4.0 (1991-1997) , Front - TOYOTA/Altezza SXE10/2.0 (1998-2001) , Front - TOYOTA/Altezza SXE10/2.0 (2001-2005) , Front - TOYOTA/Aristo JZS147/3.0 Twin Turbo Vertex (1993-1997) Brake Pads: DB1395, Front - TOYOTA/Aristo JZS160/3.0 (1997-2000) Brake Pads: DB1395, Front - TOYOTA/Aristo JZS161/3.0 Twin Turbo Vertex (1997-2005) Brake Pads: DB1395, Front - TOYOTA/Aristo UZS143/4.0 (1992-1997) Brake Pads: DB1395, Front - TOYOTA/Soarer JZZ30/2.5 Turbo (1997-2000) , Front - TOYOTA/Soarer JZZ30/2.5 Twin Turbo GT-TL (1991-1996) , Front - TOYOTA/Soarer JZZ31/3.0 (1996-2000) , Front - TOYOTA/Soarer UZZ32/4.0 (1991-1996) , Front - TOYOTA/Supra (Not UK)/3.0 Twin Turbo (1993-2002) Brake Pads: DB1395,
