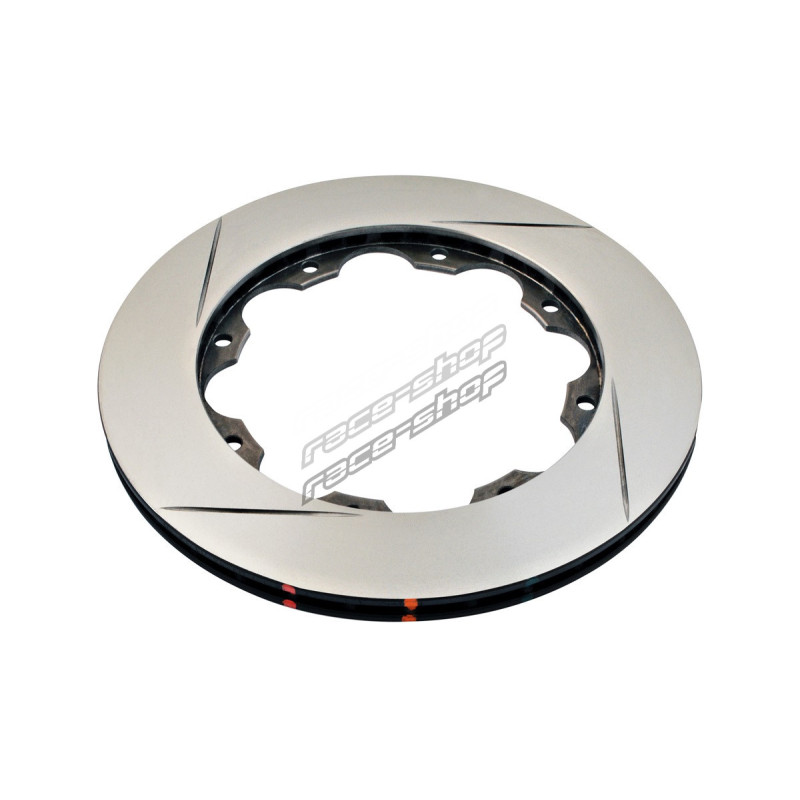

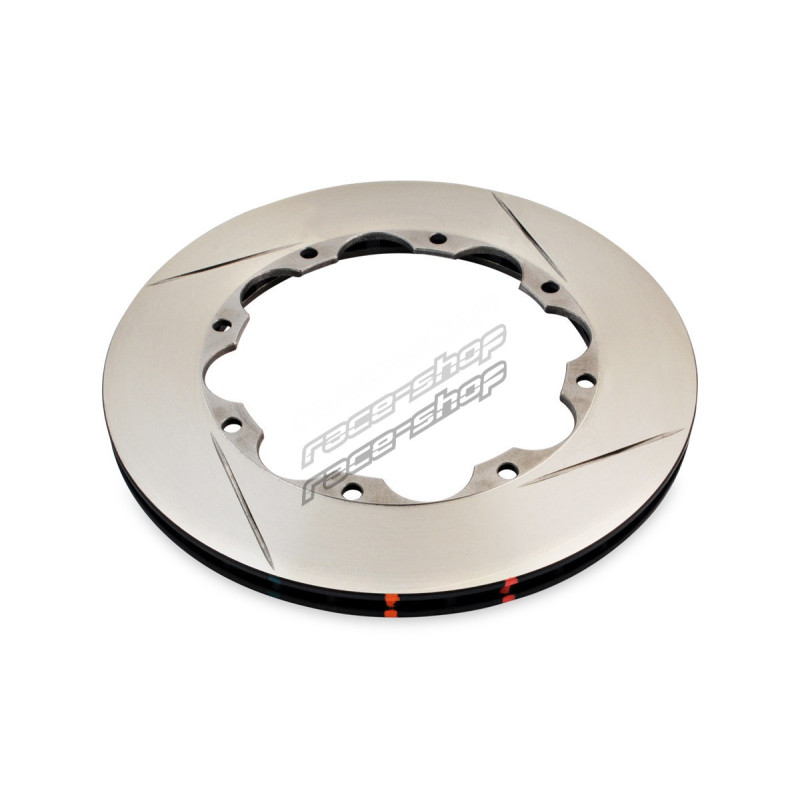

DBA 5000 series Slotted Rotor Only Left Hand DBA5003.1SL

DBA 5000 Series HD – Smooth OE Style Rotor Finish

The DBA 5000 Series HD variant features a smooth, OE-style rotor surface without any slots, cross-drilled holes, or dimples. It is the ideal solution for drivers who want the advanced performance and construction of the 5000 Series but prefer a plain rotor face for reduced noise and an OEM look.

Like all 5000 Series rotors, the HD variant is built using a high carbon cast-iron ring and aerospace-grade T6061-T6 aluminium hat, offering superior thermal performance, reduced unsprung weight, and reusability of the hat with DBA replacement rings.

Note: 5000 Series HD part numbers are not marked with any specific suffix.

Technical information:

Diameter [mm]: 277,8
Thickness [mm]: 15,9
Disc Vent: Kangaroo Paw
Annulus [mm] (Maximum useable pad width): 45,4
Pitch Circle Diameter (P.C.D.): 176
Inside Diameter [mm]: 187,5
Diameter & Number of Bolt Holes [mm]: 8.45 (x8)
Air Gap [mm]: 6,5
Offset [mm]: 0,6
Flange Inside Diameter [mm]: 156,03
Flange Thickness [mm]: 4,5
Hole Type: Round Hole
Stage: Stage 5
Tech Bulletins: Bedding-In Brakes | Motorsport Information
Replacement Nuts: Not Included

Suitable for:

N/A
