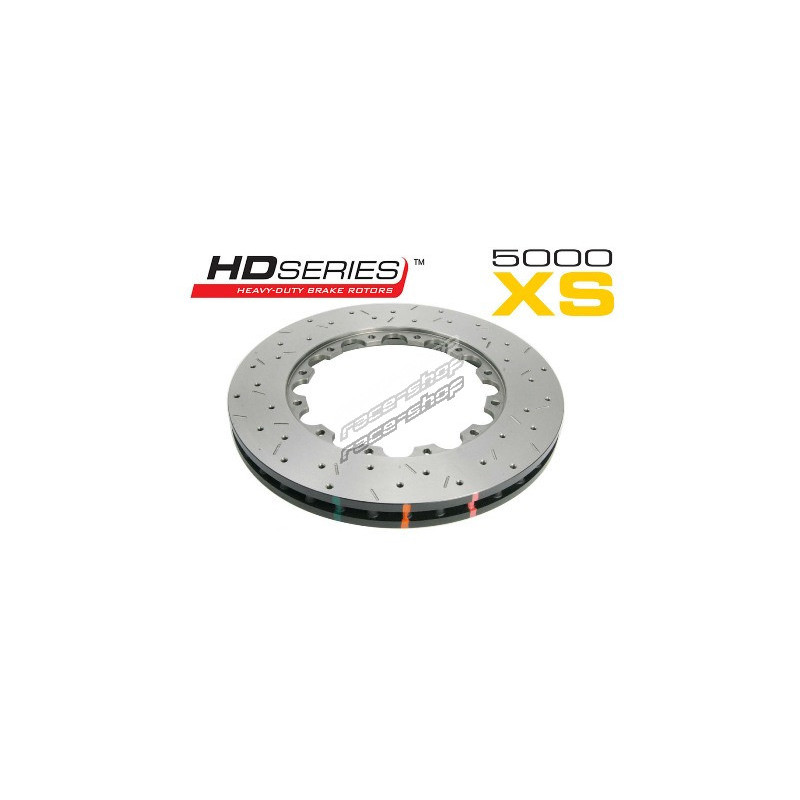

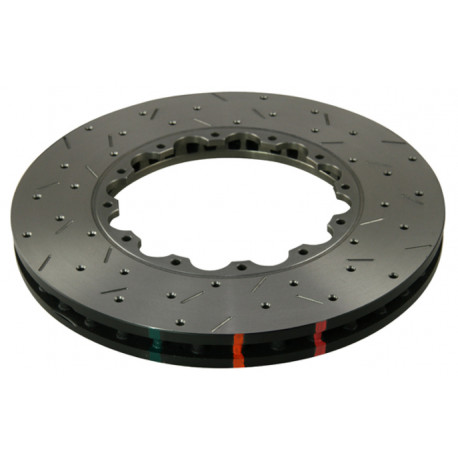

DBA 5000 series Crossed Drilled & Slotted Rotor Only DBA5046.1XS (2 pcs)

Kangaroo Paw – 144 Diamond and Tear Drop Pillar Ventilation System

Feature: Increased surface area resulting in greater heat dissipation

Advantage: Minimizes brake fade and increases braking effectiveness

Benefit: Prolongs service life for both pads and rotors while reducing mechanical damage and associated costs

XG150 High Carbon Alloyed Iron

Feature: Increased thermal capacity allows the rotor to endure extreme heat over long periods

Advantage: Minimizes warping and cracking

Benefit: Extends the overall lifespan and durability of the rotor

Paint Protection on Non-Friction Areas

Feature: Anti-corrosion paint coating on exposed surfaces

Advantage: Reduces corrosion and rust formation

Benefit: Enhances appearance and adds value to the product

CBN (Cubic Boron Nitride) Machine-Turned Finish

Feature: Minimizes Disc Thickness Variation (DTV) and improves rotor parallelism

Advantage: Reduces brake shudder and pedal vibration

Benefit: Ensures smoother braking performance and improved comfort

Ideal for enthusiasts looking for an upgrade over stock rotors.

The premium non-directional cross-drilled and slotted design of DBA brake rotors increases the number of outgassing exit points, allowing more brake pad friction gases to escape. This results in enhanced pad bite, reduced fade, and more consistent braking performance.

DBA Street Series rotors incorporate the patented "Kangaroo Paw" ventilation system featuring 144 diamond and tear-drop shaped pillars. This design significantly improves heat dissipation, reducing the risk of brake fade and increasing

Technical information:

Diameter [mm]: 328
Thickness [mm]: 28
Disc Vent: Kangaroo Paw
Annulus [mm] (Maximum useable pad width): 60
Pitch Circle Diameter (P.C.D.): 182
Inside Diameter [mm]: 202
Diameter & Number of Bolt Holes [mm]: 6.4 (x12)
Air Gap [mm]: 12
Offset [mm]: 0
Flange Inside Diameter [mm]: 166
Flange Thickness [mm]: 7,75
Hole Type: Round Hole
Stage: Stage 5
Tech Bulletins:
Tech Bulletins:
Tech Bulletins:
Replacement Nuts: Included

Suitable for:

N/A
