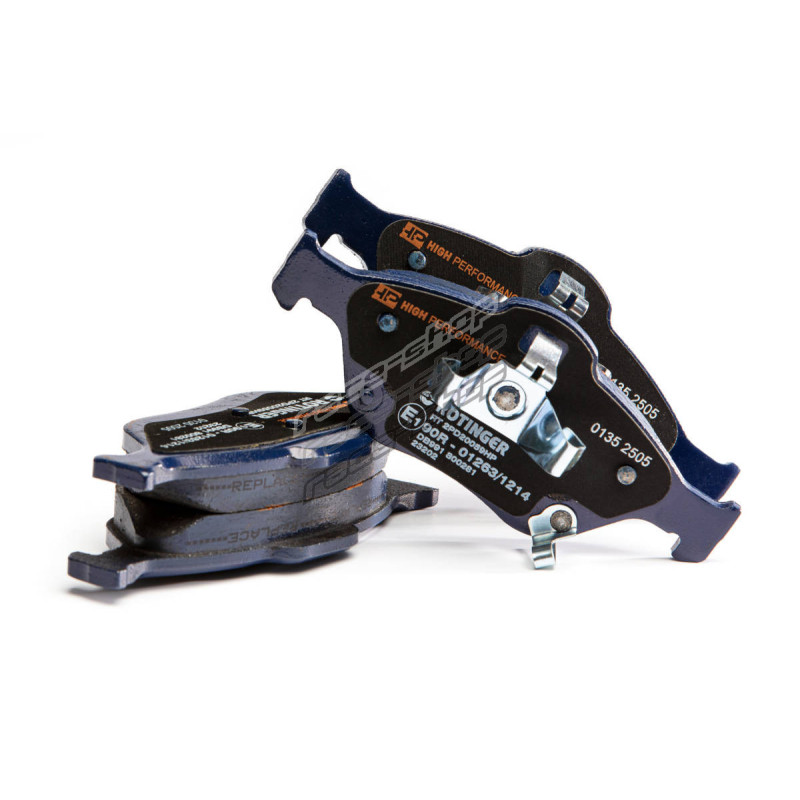

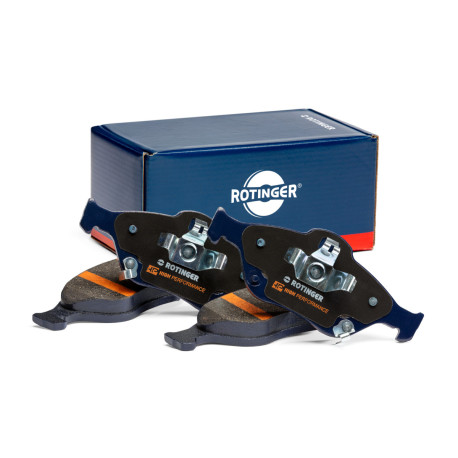

Front performance brake pads Rotinger HP, 2PD18199HP

ROTINGER HP brake pads are a technically advanced solution, designed for the highest level of safety and durability in all conditions. They are the perfect complement to the ROTINGER brake disc range.

Key features and technologies:

• Innovative Break-in Layer: The pads feature an additional friction layer that significantly shortens the break-in process. Thanks to this technology, the pads operate optimally from the moment of installation, which directly translates into your safety.
• Eco-Friendly Friction Compound: The improved compound guarantees exceptional braking efficiency right from the start, even with cold discs. Moreover, it is free of asbestos, lead, and Cr6+ chromium.
• Additional Wear Indicators: In addition to standard electronic or acoustic sensors, ROTINGER HP pads are equipped with extra, visible wear indicators. This allows the user full control over the pad condition.
• New Generation Anti-Vibration SHIM Pads: The pads feature advanced SHIM anti-vibration pads that stabilize the pad in the caliper and eliminate unwanted micro-vibrations, ensuring a quiet and comfortable ride.

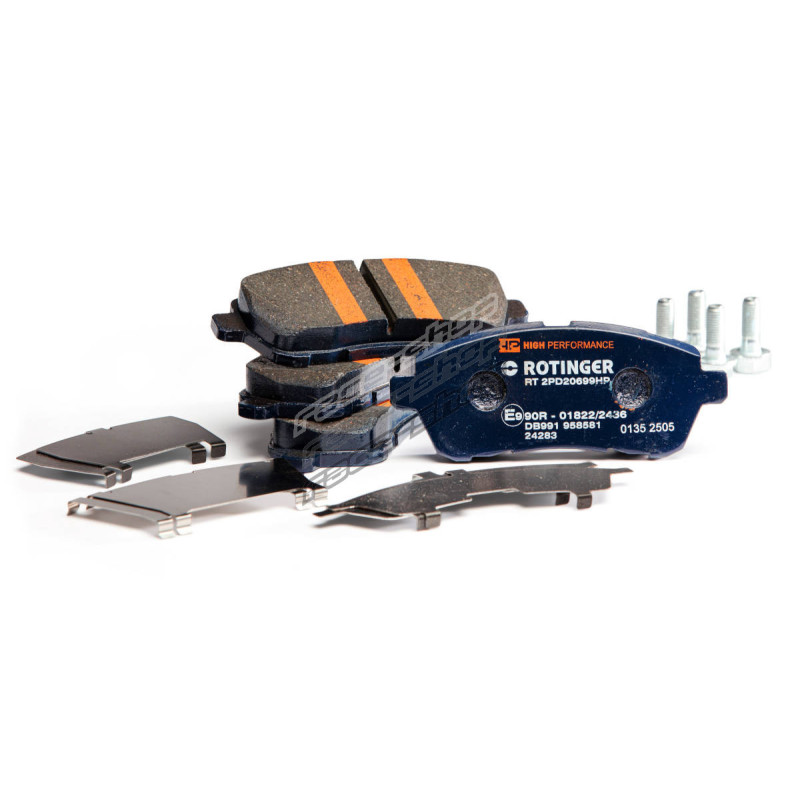

• Complete with Mounting Accessories: ROTINGER HP pads are delivered with a full mounting kit, making installation easier and compliant with vehicle manufacturers’

Product Specification:

• Designed to meet the highest quality standards.
• Compatible with original equipment (OEM) pads.
• Asbestos-free, lead-free and Cr6+ free.
• Exceptional long service life.
• Comply with all official quality and safety regulations in accordance with the European ECE R90 standards.

Dimensions:

• Height: 57,80mm
• Height 2: 57,80mm
• Width: 130,20mm
• Width 2: 130,20mm
• Thickness: 16,70mm
• Thickness 2: 16,70mm
• Weight: 1,60kg

Technical information:

This package contains 1 set of brake pads for front axle.

• Axle: Front
• Brake system: Mando
• WVA Number: 23966

Pad composition (Image legend):

• A: Shim – Anti-squeal Pad: its main task is to dampen vibrations and eliminate noise during braking.
• B: Backing Plate: a solid, perfectly fitted, one-piece steel plate covered with a special anti-corrosion lacquer, providing support and proper positioning in the brake caliper.
• C: Underlayer: provides thermal and mechanical insulation, improves vibration damping, and strengthens the connection between the friction material and the backing plate.
• D: Friction Material: individually selected for the vehicle type; eco-friendly; the number of components reaches up to 25; designed for long service life and optimal cooperation with ROTINGER discs; 100% asbestos and copper-free formula.
• E: Break-in Layer: a thin, top coating of friction material with a special composition; it accelerates the process of fitting the pad to the disc; ensures optimal braking effectiveness right from the first few kilometers.
• F: Grooves: drains dust, gases, and water from the friction surface and reduces stress in the friction material; increases braking efficiency.
• G: Chamfers: improves the contact of the brake pads; reduces noise during braking; prevents vibrations during braking.
• H: Wear Indicator: allows for a quick assessment of the brake pad’s wear level.

Application:

In order to verify the suitability of this product with your vehicle, please check the "Application" tab.

Cross-references:

TRW: GDB3342; GDB3450; GDB3523
Delphi: LP1819
Textar: 2205201; 23966 164 0 5 T4018; 2396601
OEM: 58101 1HA10; 58101 1HA20; 58101J9A55; 0K2FA 3328Z; 0K2JA 3328Z; 0K2JA 3328ZA; 58101 1HA00; 58101 1MA20; 58101 1MA21; 581010QA00; 581011XA00; 581011XA00; 58101B3A60
