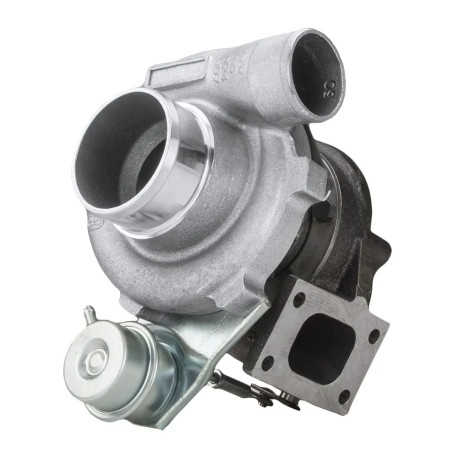

Garrett 836026-5021S Turbocharger GT Series GT2871R, 0.64 A/R, Wastegated

Garrett GT2871R performance turbocharger with a wastegated turbine housing.

Garrett GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records.

The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582.

The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity.

Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations.

Specifications

• Frame: GT28
• Bearing: ball bearing
• Rotation: standard
• Compressor wheel: 53 mm inducer, 71 mm exducer, 0.6 A/R
• Turbine wheel: 54 mm inducer, 47 mm exducer, 76 trim, 0.64 A/R
• Wastegate: internal (wastegated housing)
• Power: up to 475 HP
• Displacement: 1.8-3.0 L

Fits & compatible parts

• Compatible turbochargers: GT2052, GT3582
