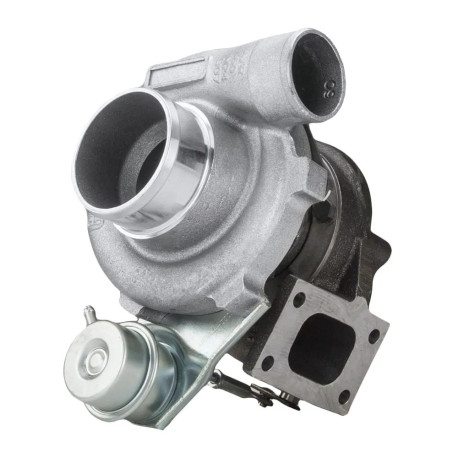

GARRETT 836026-5009S TURBOCHARGER GT2860RS 0.86 A/R

Ball bearing.

Oil & Water cooled bearign system.

Direct replacement upgrade turbocharger for GT2554R (471171-0003) and GT2854R (471171-0009); turbine housing flanges are outline interchngeable.

T25 turbine inlet flange.

Great size for applications w/packing constrains.

Essentially, a GT2860RS Disco Potato turbo with a GT2560R compressor housing

Turbine housing option available

• Turbo Part Number | Model | Turbine side | Compressor side
• New Part | Old Part | O.D.mm | I.D.mm | TRIM | A/R | O.D.mm | I.D.mm | TRIM | A/R
• 836026-5009S | 739548-5009S | GT2860RS | 53.8 | 47.0 | 76 | .86 | 60.0 | 47.2 | 62 | .60

HORSEPOWER 250HP - 360HP

DISPLACEMENT 1.8L - 3.0L

C.H.R.A. Part Number

• New Part CHRA | Old Part CHRA
• 835998-5007S | 446179-5066S

Applicable Garrett P/N's:

739548-5001S

739548-5005S

739548-5009S

739548-5010S

739548-5014S

739548-0001

739548-0005

739548-0009

739548-0010

739548-0014

739548-1

739548-5

739548-9

739548-10

739548-14

Product category: Turbocharger
