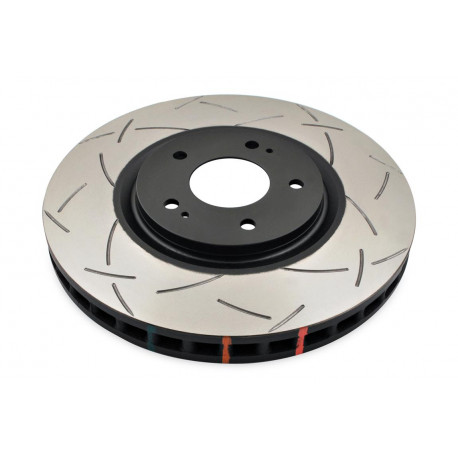

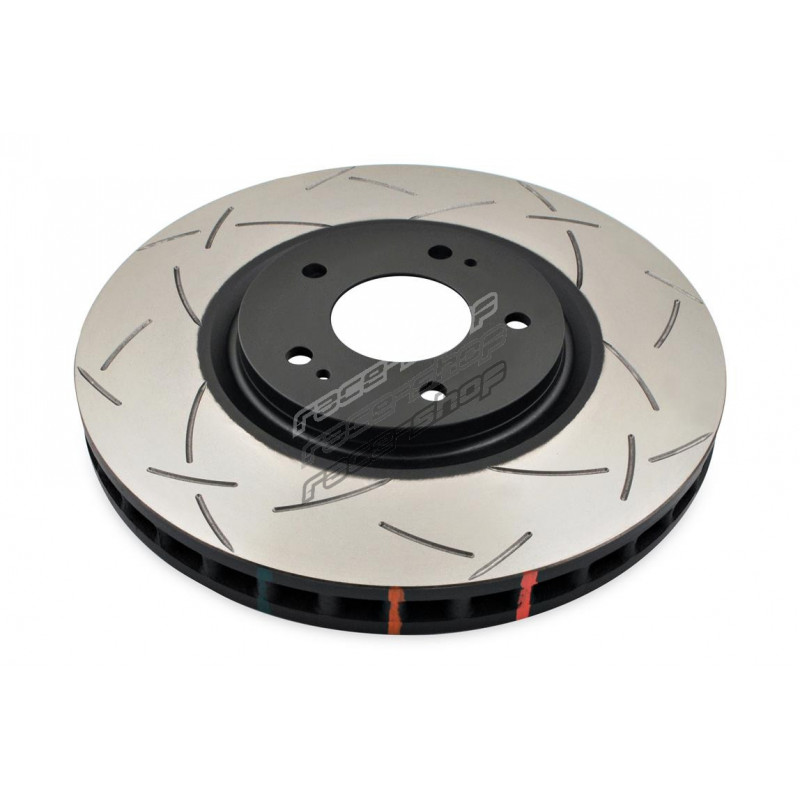

DBA 4000 series T3 DBA4418S (2 pcs)

Feature: T3 Slot – 48 precision CNC machined slots

Advantage: Tri-symmetrical curve slots dampen vibration harmonics or noise

Benefit: A quieter, responsive and smoother brake pedal feel

Advantage: Increased number of out-gassing exit points for brake pad friction gases to escape through

Benefit: Increases the consistency and effectiveness of every brake stop

Advantage: Universal slot design

Benefit: Eliminates the need for left and right discs

Feature: Kangaroo Paw – 144 diamond and tear drop pillar ventilation system

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Minimises brake fade and increases braking effectiveness

Advantage: Increased surface area resulting in greater heat dissipation

Benefit: Prolongs service life for both pads and rotors. Reduces mechanical damage and associated costs

Feature: XG150 High Carbon Alloyed Iron

Advantage: Increased thermal capacity allows handling constant extremes of heat

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermal Stability Profiling (TSP)

Advantage: Special formulation responds to DBA’s TSP process

Benefit: Minimises warping and cracking; prolongs rotor service life

Feature: Thermographic Temperature Monitoring

Advantage: Heat paint markings change colour at specific temperature thresholds

Benefit: Offers the driver a clear indication of peak braking temperatures

Advantage: Permanent colour change when temperature thresholds are exceeded

Benefit: Allows monitoring of rotor fatigue and supports warranty claims

Feature: Paint protection on non-friction areas

Advantage: Reduces corrosion

Benefit: Prevents unsightly rust formation

Advantage: Enhances appearance

Benefit: Adds value to the product

Technical information:

Diameter [mm]: 320
Disc Vent: Kangaroo Paw
Number of Holes: 5
Inner Diameter [mm]: 69
Minimum Thickness [mm]: 29,8
Thickness [mm]: 32
Height [mm]: 43.5
Pitch Circle [mm]: 114.3
Stage: Stage 4
ECE R90 number: E11*90R02/06*60514*00

Suitable for:

Front - MITSUBISHI/Lancer Evo 5/2.0 Turbo GSR (1997-1999) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 6/2.0 Turbo (1998-2001) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 7/2.0 Turbo (2000-2003) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 8/2.0 Turbo (2002-2005) Brake Pads: DB1678, Brake Caliper: Brembo Front - MITSUBISHI/Lancer Evo 9/2.0 Turbo (2005-2008) Brake Pads: DB1678, Brake Caliper: Brembo
