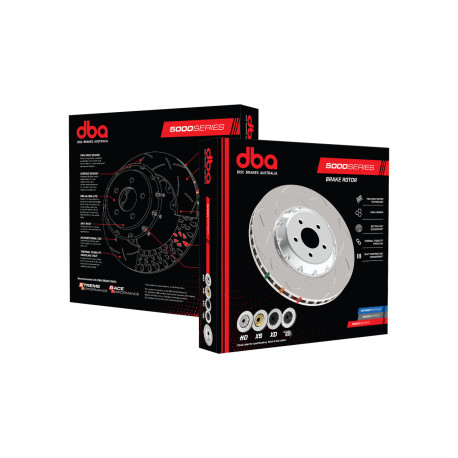

DBA 5000 series T3 Slotted Rotor Only DBA53951.1XS (2 pcs)

5000 Series T3 Brake Rotors – Ultimate Performance with T3 Slot Design

The DBA 5000 Series T3 rotors represent the pinnacle of direct replacement performance braking solutions. They combine all the proven benefits of the 5000 Series platform with DBA’s patented and globally renowned T3 bi-directional slot design.

Building on the foundation of the T2 slot, the T3 design introduces CNC-machined tri-symmetrical slots. This advanced configuration delivers an even quieter, smoother, and more responsive braking experience, ideal for high-performance driving.

The increased number of exit points created by the T3 slots enhances the evacuation of brake dust and gases, improving pad bite, reducing fade, and ensuring consistent stopping power under extreme conditions.

Recommended for: High-performance street, track, and motorsport applications where optimal braking consistency and control are critical.

Technical information:

Diameter [mm]: 400
Thickness [mm]: 34
Disc Vent: Kangaroo Paw
Stage: Stage 5
Tech Bulletins:
Tech Bulletins:
Tech Bulletins:
Annulus [mm] (Maximum useable pad width): 68.5
Pitch Circle Diameter (P.C.D.): 240
Diameter & Number of Bolt Holes [mm]: 9mm (x12)
Air Gap [mm]: 12
Offset [mm]: n/a
Flange Inside Diameter [mm]: 216
Flange Thickness [mm]: 7
Hole Type: Round
Center Hole [mm]: 216

Suitable for:

Front - DODGE/Challenger SRT Redeye/6.2 Supercharged (2020-) Brake Pads: DB2375, Brake Caliper: Brembo Front - DODGE/Charger SRT Redeye/6.2 Supercharged (2020-) Brake Pads: DB2375, Brake Caliper: Brembo
