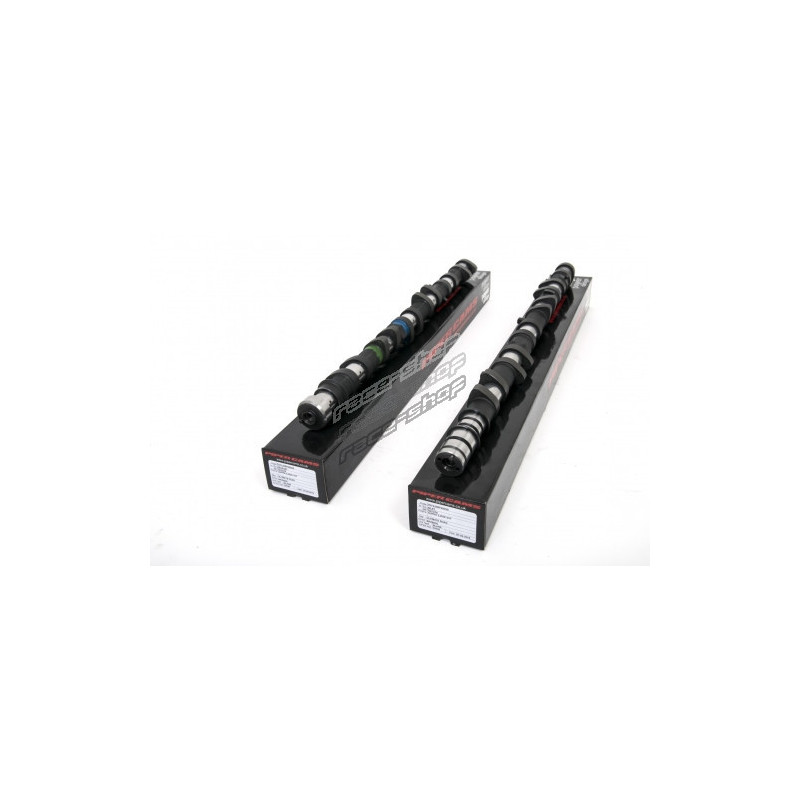

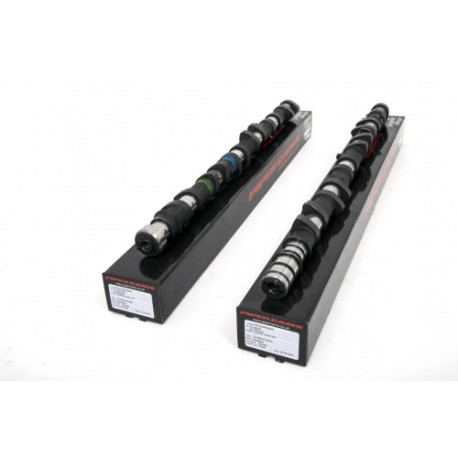

Piper Camshaft Toyota 2JZ VVTI Race

Features:

• Duration Exhaust: 280 deg
• Duration Intake: 272 deg
• Full Exhaust Lift: 110 deg
• Full Intake Lift: 110 deg
• Package Height: 126,00 mm
• Package Length: 717,00 mm
• Package Weight: 7610.00 g
• Package Width: 88,00 mm
• Power Band: 3000-7500 rpm
• TDC Exhaust Lift: 2.34 mm
• TDC Intake Lift: 1.94 mm
• Timing Exhaust: 70 - 30 deg
• Timing Intake: 26 - 66 deg
• Type: Race N/A
• Valve Exhaust Clearance: 0.30 mm
• Valve Exhaust Lift: 10.69 mm
• Valve Intake Clearance: 0.25 mm
• Valve Intake Lift: 10.74 mm

Suitable For:

Toyota (48) 3.0L 24v - 2JZ-GTE (7946)
