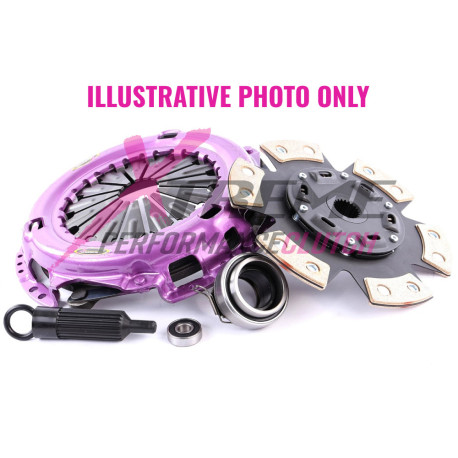

KGM22041-1B Xtreme Clutch Conversion kit HOLDEN 253 I6 GM T5 10x28.6mm

The Stage 2 clutch uses an upgraded pressure plate combined with a ceramic friction disc in sprung configurations. The stage two clutch range is designed for road and track going vehicles that require a higher torque capacity and temperature tolerance, and faster engagement. Clutch engagement is more aggressive than stage 1, so it is not recommended for daily driven vehicles.

These kits feature a high quality cover with increased clamping force compared with standard, between 20-40% depending on the demands of the individual vehicle. They use a ceramic “paddle” friction disc which can result in more noise and harsher engagement.

Tech. Info:

Reference: KGM22041-1B

Weight: 8

Note:

Clutch Disc Diameter (mm): 220
Clutch Disc Spline Count: 10
Clutch Disc Spline Diameter (mm): 28.6
Torque (Nm): 490
Flywheel Step: Flat
Design: Single Plate
Stage: Stage 2
Clamp Load:
Recommended for: Track - Stage 2
Ring Gear Tooth count:
Additional information:

Suitable for:

N/A
