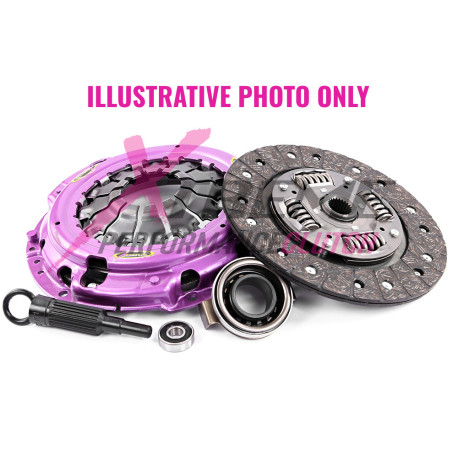

KTY23010-1A Clutch Kit Xtreme Performance Heavy Duty Organic 200Nm 470kg (50%)

Xtreme Performance - sprung organic kit /-1ARecommended for: Street use in vehicles with minor engine modifications.

Sprung organic clutch kits offer exceptional driveability for vehicles used daily but also have performance modifications. The sprung organic disc offers improved dampening which reduces the shock loading on the transmission.

Specifications:

• Torque capacity 200Nm
• Clamp load 470kg 50% Increased over standard
• Organic Friction Discs
• Heavy Duty Pressure Plate
• Kit contains everything you need for a successful installation + accessories

Xtreme PerformanceAt Xtreme Clutch, we strive to offer a variety of clutch options for each vehicle to ensure a clutch solution is available for every vehicle application. Whether you are modifying a road vehicle or building a race car from scratch, we have the clutch solution for you. Our upgrades are divided into different stages depending on the friction disc material and the number of friction discs.

What's in the Box?

Xtreme Performance upgrade kits are available with everything you need for a successful installation + accessories you may want to upgrade or replace while the gearbox is out of the vehicle.

Tech. Info:

Reference: KTY23010-1A

Weight: 6.39

Note:

Clutch Disc Diameter (mm): 225
Clutch Disc Spline Count: 21
Clutch Disc Spline Diameter (mm): 29
Torque (Nm): 200
Flywheel Step: -18.0mm/.708""
Design: Single Plate
Stage: Stage 1
Clamp Load: 470Kg (50% inc.)
Recommended for: Street Performance & Towing - Stage 1
Ring Gear Tooth count:
Additional information:

Single Plate

Suitable for:

- Toyota/Corolla/1.6 4WD (AE95)/1988.04-1995.10/4A-FE 1587 Petrol 77 kW 105 BHP (1988.04 - 1995.10)
Toyota/Corolla/1.6 (AE114)/1995.06-2000.07/4A-FE 1587 Petrol 85 kW 116 BHP (1995.06 - 2000.07)
Toyota/Sprinter/1.8 (AE115_. AE1012_)/1995.08-2001.10/7A-FE 1762 Petrol 85 kW 116 BHP (1995.08 - 2001.10)
Toyota/Sprinter/1.8 4WD (AE102_. AE115_)/1995.08-2001.10/7A-FE 1762 Petrol 85 kW 116 BHP (1995.08 - 2001.10) ,
