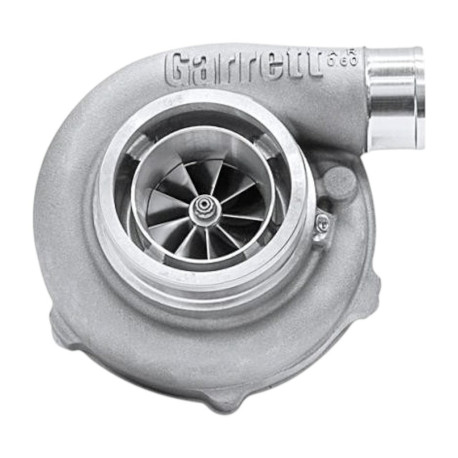

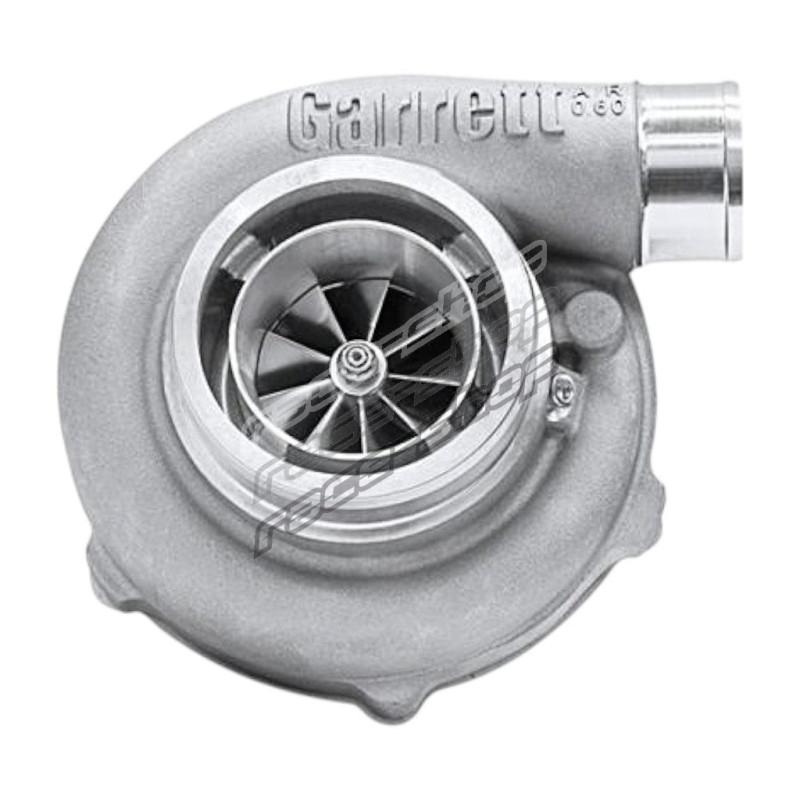

GARRETT 851154-5001S TURBOCHARGER GEN II WITHOUT TURBINE HOUSING FOR GARRETT GTX3076R

Description GARRETT 851154-5001S Turbocharger Gen II without Turbine Housing for GARRETT GTX3076R

The GARRETT 851154-5001S GTX3076R Gen II turbocharger is supplied without a turbine housing and represents the next evolution of the GTX series. Featuring a redesigned compressor wheel with updated aerodynamics, it can deliver up to 20% more horsepower than the previous generation. Developed using Garrett’s proprietary CFD-based simulation technology, the wheel design optimizes mass airflow and efficiency, providing a broader tuning range. The 8 mm dual ceramic ball bearing cartridge ensures fast spool and improved reliability by reducing shaft motion. A newly engineered high-flow compressor housing with a fully machined inlet, outlet, and ported shroud supports maximum performance and precise fitment. Equipped with a machined speed sensor port, this unit allows data-driven tuning for efficient operation. Fully interchangeable with GT and GTX Gen I turbochargers, it is compatible with all GT/GTX turbine housing kits.

• Next-generation GTX Gen II compressor wheel with up to 20% more horsepower
• CFD-optimized wheel design for maximum flow and efficiency
• 8 mm dual ceramic ball bearing cartridge for durability and fast response
• Fully machined compressor inlet, outlet, and ported shroud
• New high-flow compressor housing with integrated speed sensor port
• Outline interchangeable with GT and GTX Gen I turbos
• Compatible with all GT and GTX turbine housings

Specifications:

• Horsepower Range: 400 – 750
• Displacement Range: 1.8 L – 3.0 L
• Model: GTX3076R Gen II
• Garrett Part Number: 851154-5001S

Product category: Turbocharger
