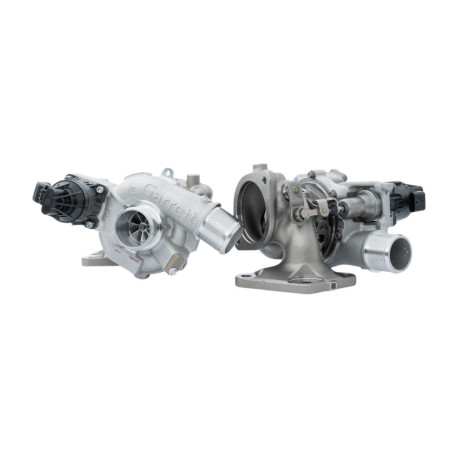

GARRETT 926432-5002S TURBOCHARGER KIT GT1752S FOR FORD BRONCO / RANGER RAPTOR 3.0L 2022+

Description GARRETT 926432-5002S Turbocharger Kit GT1752S for FORD Bronco / Ranger Raptor 3.0L 2022+

The GARRETT 926432-5002S Turbocharger Kit offers a direct-fit, OEM-certified upgrade for the Ford Bronco and Ranger Raptor 3.0L V6 Twin Turbo engines from 2022 onwards. This dual turbocharger assembly (LH & RH) includes calibrated electronic actuators and is engineered to deliver increased airflow and higher performance without compromising durability. Certified under CARB D-871-4, this system is ideal for enthusiasts seeking improved output and response while maintaining emissions compliance.

• Complete left and right turbo assemblies with pre-calibrated electronic actuators
• 18% increase in compressor flow and 6% increase in turbine flow compared to stock
• OEM turbocharger for the Ford 3.0L application with 41 mm compressor inducer
• High-grade stainless steel turbine housing rated to withstand up to 950°C
• Integrated, machined sensor port for turbo shaft speed monitoring
• Supports output up to 640 BHP (477 kW)
• Compatible with G-Smart Bluetooth Module or analog speed monitoring kits

Specifications:

• Engine Compatibility: 3.0L V6 Twin Turbo
• Model: GT1752S
• Compressor Inducer: 41 mm
• Compressor Exducer: 52 mm
• Turbine Inducer: 44 mm
• Turbine Exducer: 39 mm
• Max Turbocharger Speed: 214.9 krpm
• Kit Part Number: 926432-5002S (includes LH & RH assemblies)

Product category: Turbocharger
