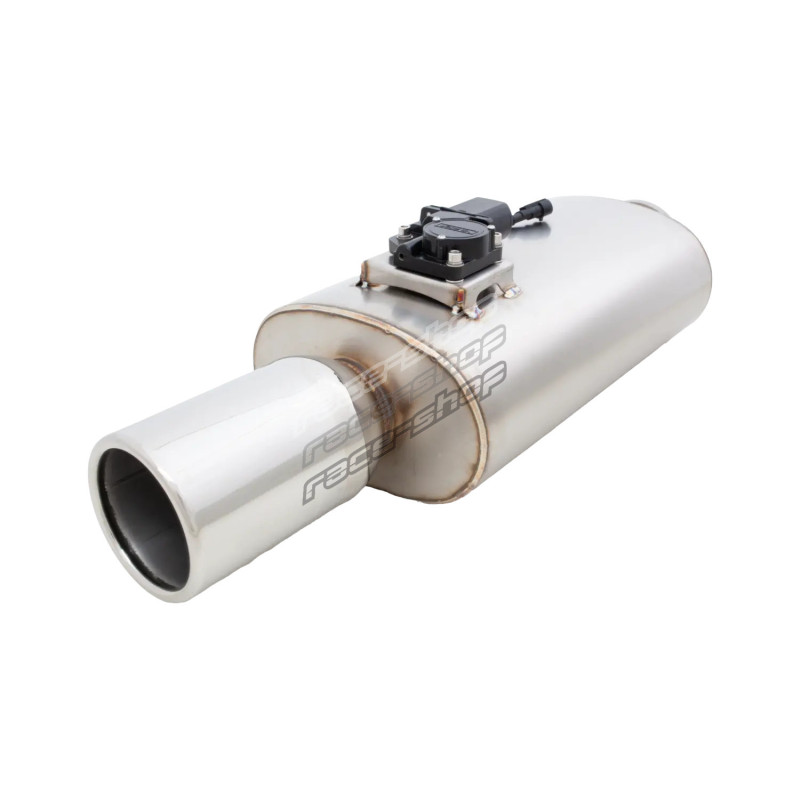

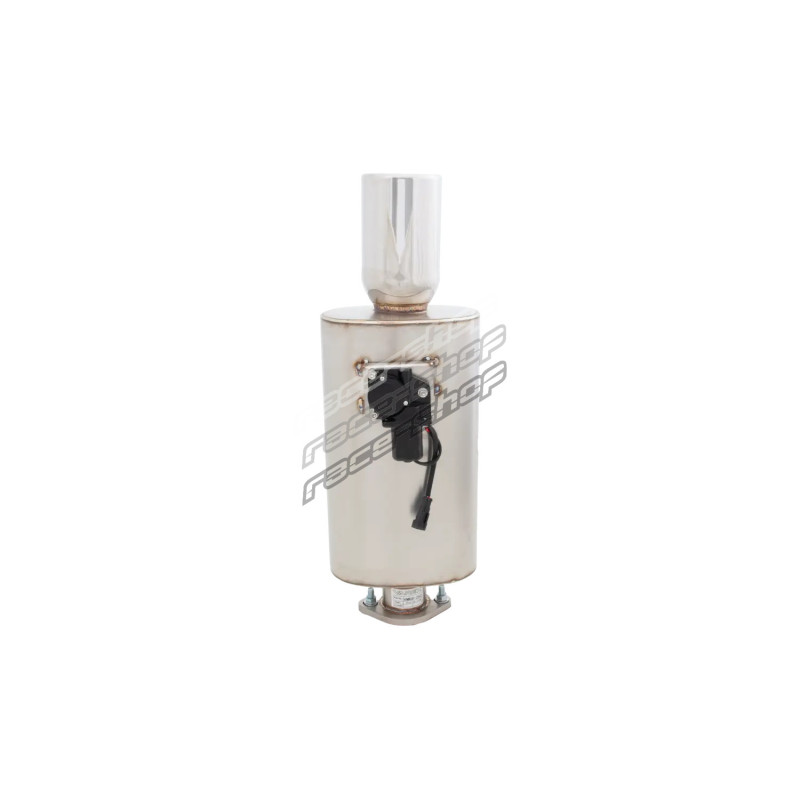

Varex exhaust valve muffler 5.5"x9.5"x15" Flanged Inlet 2.5", Double-Wall Tip 4"

The Varex Valved universal muffler is the ideal system add-on for owners and exhaust builders alike that are looking for a compact, valved oval muffler solution to incorporate into their own 3” exhaust system build.
Utilising our Varex muffler allows you to instantly expand your performance and acoustic options with the integrated exhaust valve control – activated by the supplied Varex controller and two key fobs.
The muffler body measures 9.5” wide by 5.5″ High by 15” long and utilises a flanged 2.5” centre-inlet centre-out configuration with 4″ tip, for easier installation.

• 5.5″x9.5″x15″ Body
• 304 Stainless Steel
• 2.5″ inlet with 2 bolt flange
• Single 4″ tip outlet
• Allow 2 inch clearance for actuating motor

Tech. Info:

Reference: VMK8-250

Weight: 10

Note:

/

Size:

Inlet [Inch]: 2.5"\Inlet Length [Inch]: 3"
Outlet [Inch]: 4"
Outlet Length [Inch]: 7"
Outlet Style: Double Wall
Body Dimension [Inch]: 5.5" x 9.5" x 15"\Box 1 Dimension [cm]: 66 x 28 x 33\Box 1 Weight [kg]: 10
Body Dimension [cm]: 13,97 x 24,13 x 38,1

Suitable for:

Universal
